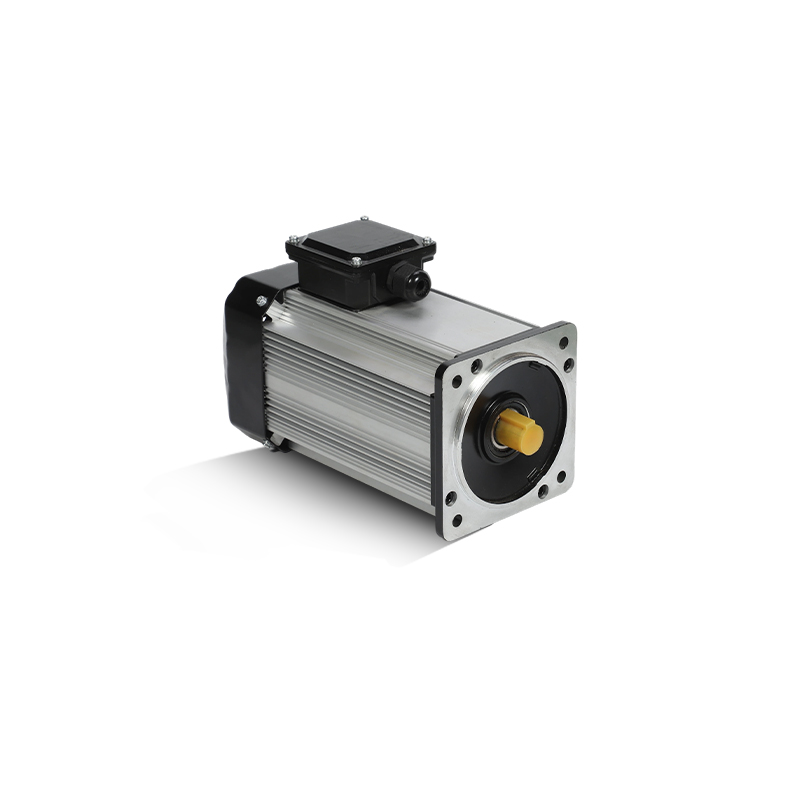

FBBB-Electro-Hydraulic Actuator Motor

FBBB-Electro-Hydraulic Actuator Motor is a power unit for electro-hydraulic cylinders. It converts electric energy into mechanical energy to drive the oil pump, which builds pressure in hydraulic fluid and pushes the piston of the cylinder to perform linear reciprocating motion. It is suitable for various industrial automation applications requiring precise control and high thrust.

General Machinery Industry: Hydraulic Pump

Contact Us
PREV：Steering MotorNEXT：EHBD IE3 Aluminium-Cased Motor
Motor Data and Model Message
Motor model Motor model
LV511 LV513 LV515 LV517
Nominal Power W 1100 1500 2200 3600
Nominal Voltage V 230/400 230/400 230/400 230/400
Nominal Current A 4.1/2.3 5.6/3.2 8.0/4.6 13.2/7.6
frequency HZ 50 50 50 50
Nominal Speed RPM 2842 2822 2810 2788
Rated efficiency η% 77 77 78 78
Factor cosϕ 0.88 0.87 0.89 0.88
Nominal Speed N.m 3.7 5.1 7.5 12.3
Tst/Tn 2 2 2 2
Tmax/Tn 2.2 2.2 2.1 2.2
Ist/In 5 5 5 5
Motor Design
Duty S1/S2/S3 S1/S2/S3 S1/S2/S3 S1/S2/S3
Insulation Degree Class B/F/H B/F/H B/F/H B/F/H
IP Class Class IP54/IP55 IP54/IP55 IP54/IP55 IP54/IP55

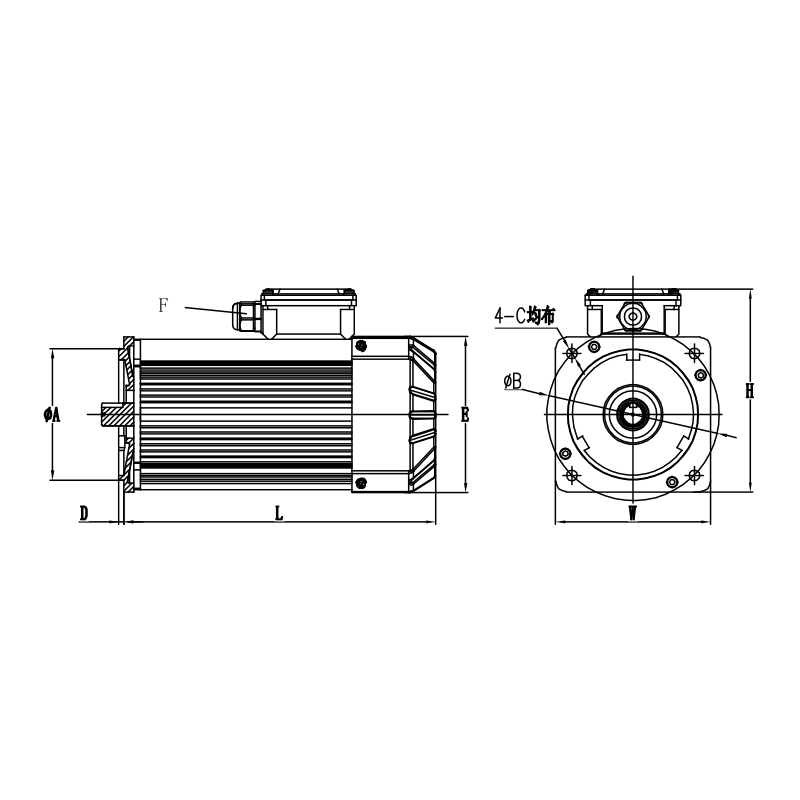

IP Class L(mm) 237 242 262 287
W(mm) 130 130 130 130
H(mm) 170 170 170 170
Installation dimensions A(mm) 110 110 110 110
B(mm) 145 145 145 145
C(mm) Φ9 Φ9 Φ9 Φ9
D(mm) 4 4 4 4
E(mm) 130 130 130 130
F M20*1.5/PG13.5 M20*1.5/PG13.5 M20*1.5/PG13.5 M20*1.5/PG13.5
other The connection mode of the client axis can be customized Metal screw sleeves/glands
Any universal voltage and frequency can be customized Long leads can be customized
Closed bearings The altitude < 1000 meters above sea level
