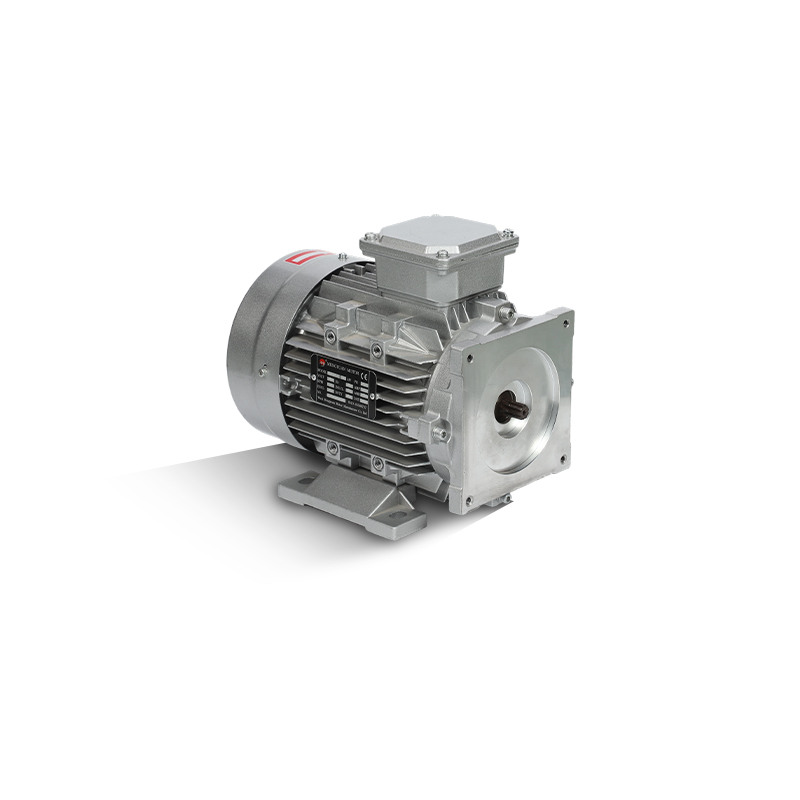

CBBD Hydraulic Power-Pack Motor

CBBD Hydraulic Power-Pack Motor converts electrical energy into mechanical energy efficiently and stably, driving the hydraulic pump to generate hydraulic power. It is adaptable to various complex working conditions, featuring high output torque and a wide speed regulation range.

General Machinery Industry: Hydraulic Pump

Contact Us
PREV：CDBD Aluminum-Cased MotorNEXT：CBAB Three Phase Dock Leveller Motor
Motor Data and Model Message
Motor model Motor model
LV507 LV508 LV509 LV510 LV511 LV512 LV513 LV514 LV515 LV516 LV517 LV518
Nominal Power W 550 550 750 750 1100 1100 1500 1500 2200 2200 3000 3000
Nominal Voltage V 400 400 400 400 400 400 400 400 400 400 400 400
Nominal Current A 1.3 1.4 1.7 1.7 2.4 2.6 3.1 3.3 4.5 4.8 6.3 6.6
frequency HZ 50 50 50 50 50 50 50 50 50 50 50 50
Nominal Speed RPM 2828 1400 2828 1400 2828 1400 2840 1410 2840 1410 2840 1410
Rated efficiency η% 72 72 75 75 75 75 80 80 83 80 82 81
Factor cosϕ 0.86 0.8 0.83 0.84 0.88 0.84 0.88 0.83 0.85 0.82 0.84 0.81
Nominal Speed N.m 1.9 3.8 2.5 5.2 3.7 7.7 5.1 10.2 7.4 15 10.1 20.3
Tst/Tn 1.6 2 1.8 2 2 1.8 1.8 2 2.2 2.2 2 2.2
Tmax/Tn 2.1 2.2 2.3 2.2 2.2 2 2 2.2 2.5 3 2.5 2.5
Ist/In 4.2 4 5 4.2 5 4.5 5.5 6 6.5 5 7 5
Motor Design
Duty S2/S3 S2/S3 S2/S3 S2/S3 S2/S3 S2/S3 S2/S3 S2/S3 S2/S3 S2/S3 S2/S3 S2/S3
Insulation Degree Class B/F/H B/F/H B/F/H B/F/H B/F/H B/F/H B/F/H B/F/H B/F/H B/F/H B/F/H B/F/H
IP Class Class IP54/IP55 IP54/IP55 IP54/IP55 IP54/IP55 IP54/IP55 IP54/IP55 IP54/IP55 IP54/IP55 IP54/IP55 IP54/IP55 IP54/IP55 IP54/IP55
IP Class L(mm) 260 260 260 260 260 260 260 260 284 284 284 320
W(mm) 158 158 158 158 158 158 175 175 175 175 175 200
H(mm) 200 200 200 200 200 200 220 220 220 220 220 258

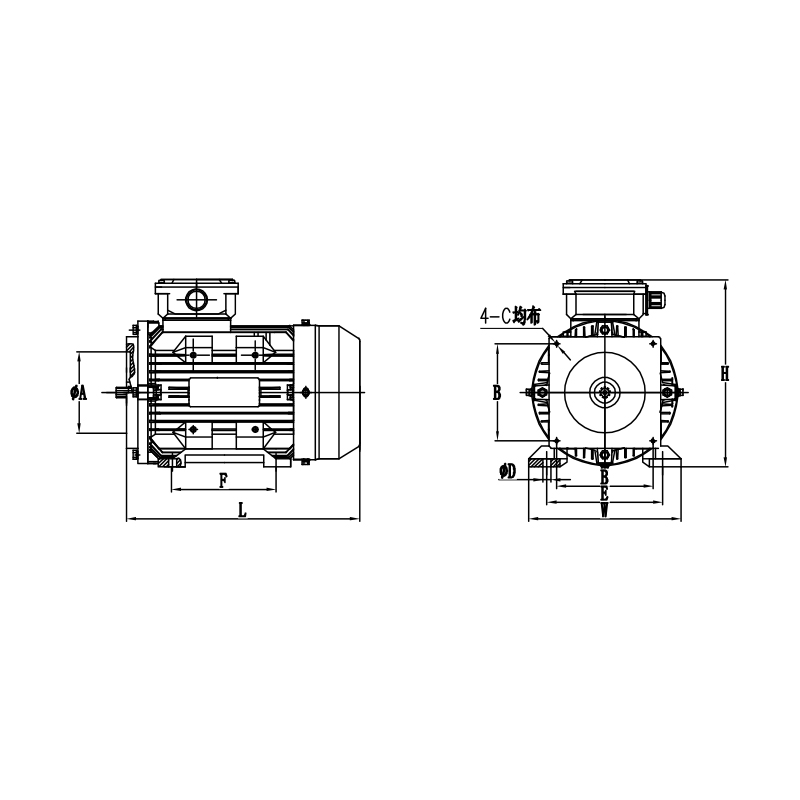

Installation dimensions A(mm) Φ98.3/Φ110 Φ98.3/Φ110 Φ98.3/Φ110 Φ98.3/Φ110 Φ98.3/Φ110 Φ98.3/Φ110 Φ98.3/Φ110 Φ98.3/Φ110 Φ98.3/Φ110 Φ98.3/Φ110 Φ98.3/Φ110 Φ98.3/Φ110
B*B(mm) 113*113/117*117 113*113/117*117 113*113/117*117 113*113/117*117 113*113/117*117 113*113/117*117 113*113/117*117 113*113/117*117 113*113/117*117 113*113/117*117 113*113/117*117 113*113/117*117
C M6/Φ7/Φ9 M6/Φ7/Φ9 M6/Φ7/Φ9 M6/Φ7/Φ9 M6/Φ7/Φ9 M6/Φ7/Φ9 M6/Φ7/Φ9 M6/Φ7/Φ9 M6/Φ7/Φ9 M6/Φ7/Φ9 M6/Φ7/Φ9 M6/Φ7/Φ9
D(mm) 10 10 10 10 10 10 10 10 10 10 10 12
E(mm) 125 125 125 125 125 125 140 140 140 140 140 160
F(mm) 100 100 100 100 100 100 100 100 125 125 125 140
other The connection mode of the client axis can be customized The junction box rotates 4*90°
Any universal voltage and frequency can be customized Detachable motor feet
Closed bearings The altitude < 1000 meters above sea level
Rated Voltage (V): 400 (Custom voltages available; frequency supports 50Hz, 60Hz or 50/60Hz)
