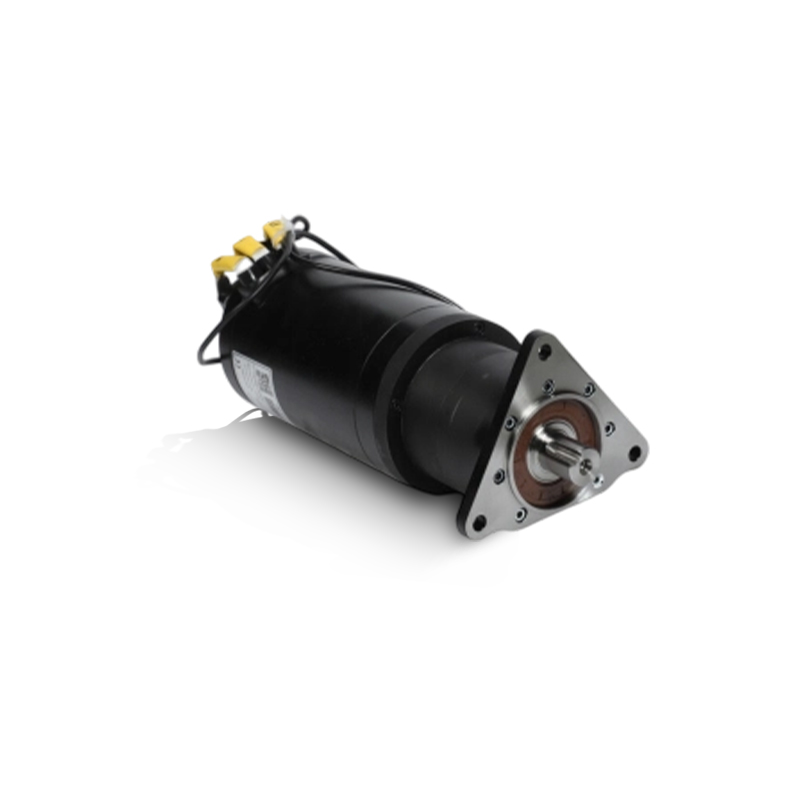

Steering Motor

Contact Us
PREV：Storage Truck Drive MotorNEXT：FBBB-Electro-Hydraulic Actuator Motor
Motor Data and Model Message
Motor model Motor model
LF006 LF028 LF040 LF056 LC010 LC011 LC026 LC030 LC037 LC060
Nominal Power kW 0.65 0.67 0.67 1.1 0.2 0.2 0.2 0.4 0.4 0.4
Nominal Voltage V 16VAC 32VAV 50VAC 54VDC 24VDC 48VDC 24VDC 24VDC 24VDC 24VDC
Nominal Current A 36 21 18 20 13 6.5 13 24 24 24
Frequency HZ 120 77 103 129 / / / / / /
Nominal Speed RPM 3487 2156 3004 3432 3200 3200 3600 3000 3000 3000
Rated efficiency η% 83 77 78.5 74.5 / / / / / /
Factor cosϕ 0.79 0.76 0.6 0.78 / / / / / /
Nominal Torque N.m 1.8 3 2.1 3.1 0.59 0.59 0.59 1.19 1.19 1.19
reduction ratio i 50 50 50 50 31.5 31.5 32 32 32 32
Motor Design
Duty Cycle Min 60 60 60 60 60 60 60 60 60 60
Insulation Class Class F/H F/H F/H F/H F/H F/H F/H F/H F/H F/H
IP Class Class IP54 IP54 IP54 IP54 IP54 IP54 IP54 IP54 IP54 IP54
Motor Noice dBA/1m 60 60 60 60 60 60 60 60 60 60
Thermal Protection Optional √ √ √ √ / / / / / /
Insulation Resistance MΩ ≥50 ≥50 ≥50 ≥50 ≥10 ≥10 ≥10 ≥10 ≥10 ≥10
Other Shafts are custom-made to customer specifications
