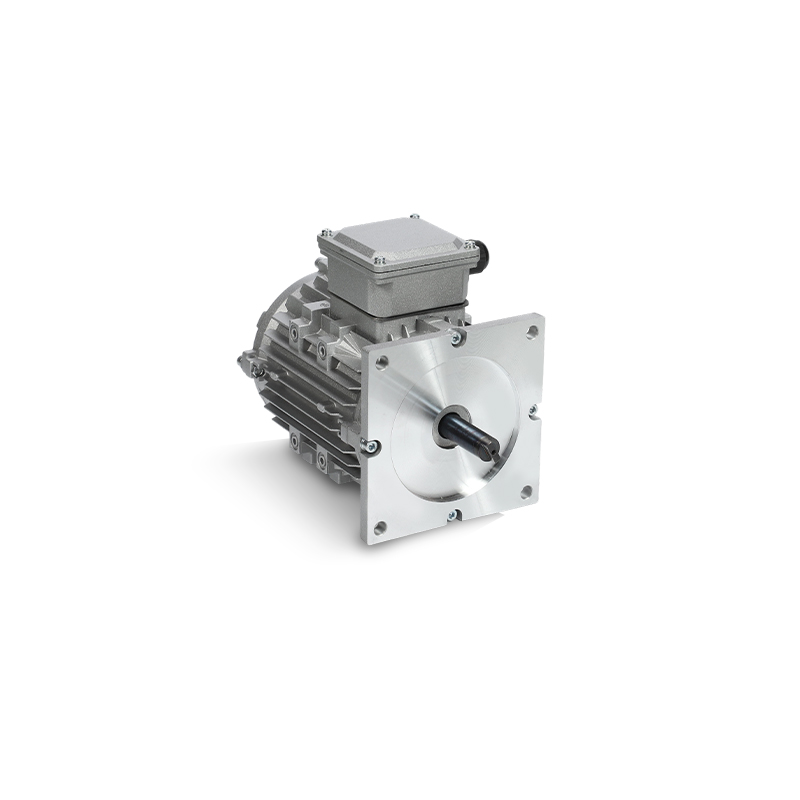

CBAB Three Phase Dock Leveller Motor

CBAB Three Phase Dock Leveller Motor efficiently and stably converts electric energy into mechanical energy to drive the hydraulic pump and generate hydraulic power. It features high output torque, wide speed regulation range, and reliable performance under various complex working conditions.

General Machinery Industry: Hydraulic Pump

Contact Us
PREV：CBBD Hydraulic Power-Pack MotorNEXT：AJAB Sub-Oil B Motor
Motor Data and Model Message
Motor model Motor model
LV509 LV511 LV513
Nominal Power W 750 750 750 750 1100 1100 1100 1100 1500 1500 1500 1500
Nominal Voltage V 220 380 230 400 220 380 230 400 220 380 230 400
Nominal Current A 3.6 2.1 3.3 1.9 4.7 2.7 4.5 2.6 6.4 3.7 5.9 3.4
frequency HZ 50 50 50 50 50 50 50 50 50 50 50 50
Nominal Speed RPM 2850 2850 2860 2860 2750 2750 2780 2780 2650 2650 2750 2750
Rated efficiency η% 78 78 75 75 76 76 73.5 73.5 72 72 74 74
Factor cosϕ 0.68 0.68 0.7 0.7 0.81 0.81 0.81 0.81 0.85 0.85 0.85 0.85
Nominal Speed N.m 2.51 2.51 2.51 2.51 3.8 3.8 3.8 3.8 5.42 5.42 5.4 5.4
Tst/Tn 3.3 3.3 2.46 2.46 2.35 2.35 2.35 2.35 2.1 2.1 2.7 2.7
Tmax/Tn 3.6 3.6 2.67 2.67 2.51 2.51 2.51 2.51 2.2 2.2 2.85 2.85
Ist/In 6.1 6.1 4.9 4.9 4.6 4.6 4.6 4.6 4 4 4.75 4.75
Motor Design
Duty S2/S3 S2/S3 S2/S3 S2/S3 S2/S3 S2/S3 S2/S3 S2/S3 S2/S3 S2/S3 S2/S3 S2/S3

Insulation Degree		 Class B/F B/F B/F B/F B/F B/F B/F B/F B/F B/F B/F B/F
IP Class Class IP54/IP55/IP56 IP54/IP55/IP56 IP54/IP55/IP56 IP54/IP55/IP56 IP54/IP55/IP56 IP54/IP55/IP56 IP54/IP55/IP56 IP54/IP55/IP56 IP54/IP55/IP56 IP54/IP55/IP56 IP54/IP55/IP56 IP54/IP55/IP56

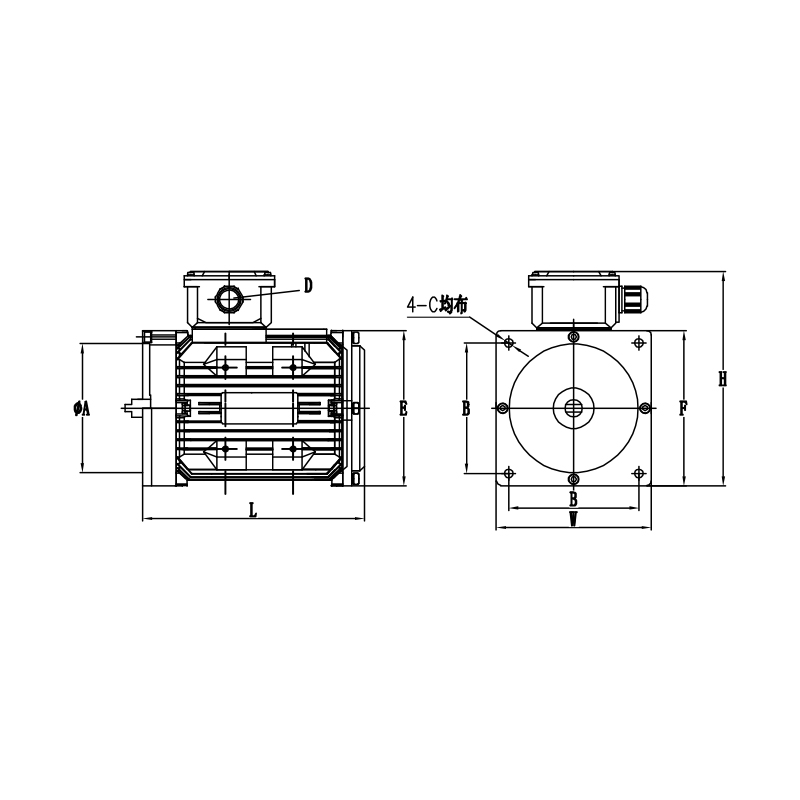

IP Class L(mm) 186 186 186 186 186 186 186 186 186 186 186 186
W(mm) 132/133 132/133 132/133 132/133 132/133 132/133 132/133 132/133 132/133 132/133 132/133 132/133
H(mm) 180 180 180 180 180 180 180 180 180 180 180 180
Installation dimensions A(mm) Φ98.3/Φ110 Φ98.3/Φ110 Φ98.3/Φ110 Φ98.3/Φ110 Φ98.3/Φ110 Φ98.3/Φ110 Φ98.3/Φ110 Φ98.3/Φ110 Φ98.3/Φ110 Φ98.3/Φ110 Φ98.3/Φ110 Φ98.3/Φ110
B*B(mm) 113*113/117*117 113*113/117*117 113*113/117*117 113*113/117*117 113*113/117*117 113*113/117*117 113*113/117*117 113*113/117*117 113*113/117*117 113*113/117*117 113*113/117*117 113*113/117*117
C M6/Φ7/Φ9 M6/Φ7/Φ9 M6/Φ7/Φ9 M6/Φ7/Φ9 M6/Φ7/Φ9 M6/Φ7/Φ9 M6/Φ7/Φ9 M6/Φ7/Φ9 M6/Φ7/Φ9 M6/Φ7/Φ9 M6/Φ7/Φ9 M6/Φ7/Φ9
D M18*1.5/PG13.5/PG11 M18*1.5/PG13.5/PG11 M18*1.5/PG13.5/PG11 M18*1.5/PG13.5/PG11 M18*1.5/PG13.5/PG11 M18*1.5/PG13.5/PG11 M18*1.5/PG13.5/PG11 M18*1.5/PG13.5/PG11 M18*1.5/PG13.5/PG11 M18*1.5/PG13.5/PG11 M18*1.5/PG13.5/PG11 M18*1.5/PG13.5/PG11
E(mm) 132 132 132 132 132 132 132 132 132 132 132 132
F(mm) 132/133 132/133 132/133 132/133 132/133 132/133 132/133 132/133 132/133 132/133 132/133 132/133
other The connection mode of      the client axis can be customized 4*90°The junction box rotates 4*90°
Any universal voltage and frequency can be customized Long leads can be customized
Closed bearings  The altitude < 1000 meters above sea level
Rated Voltage (V): 220 (Custom voltages available; frequency: 50Hz, 60Hz or 50/60Hz)
