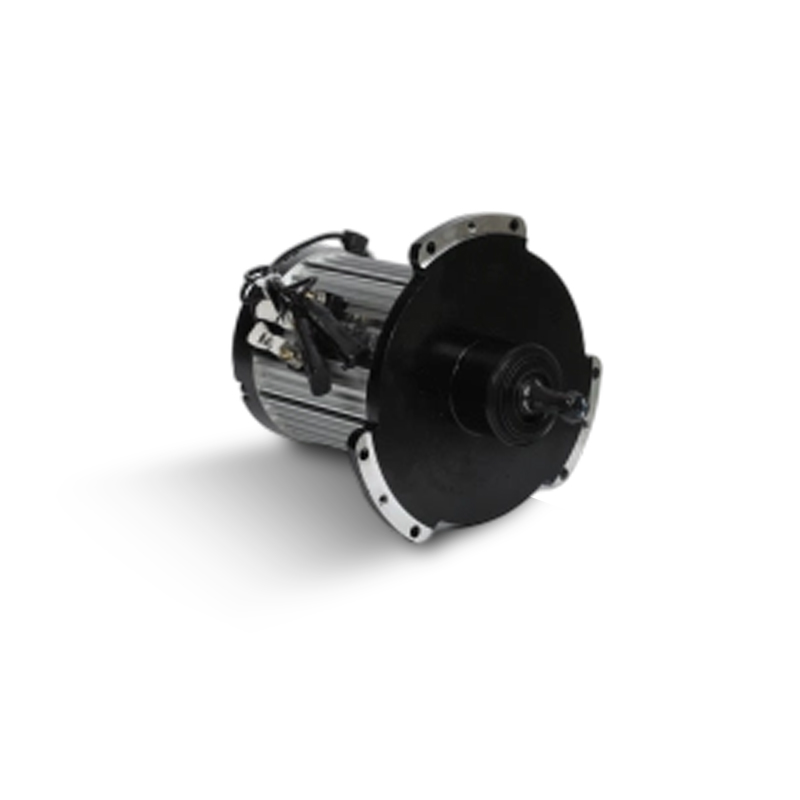

Storage Truck Drive Motor

Contact Us
PREV：No previous articleNEXT：Steering Motor
Motor Data and Model Message
Motor model Motor model
LF001 LF002 LF003 LF003-48V LF035 LF004 LF008 LF009
Nominal Power 1.6 1.6 2.5 2.5 2.6 0.65 1.3 1.7
Nominal Voltage V(AC) 16V 16V 16V 33V 16V 17V 16V 16V
Nominal Current A 100 100 138 64 132 36 81 90
Frequency HZ 87 87 120 100 81 120 50 72
Nominal Speed RPM 2530 2530 3315 2760 2265 3443 1344 2025
Rated efficiency η% 83 83 82 82 80 0.83 73 0.8
Factor cosϕ 0.82 0.82 0.8 0.83 0.89 0.79 0.8 0.8
Nominal Torque N.m 6 6 6.8 8.6 11 1.8 9.2 7.7
Motor Design
Duty Cycle Min 60 60 60 60 60 60 60 60
Insulation Class Class F/H F/H F/H F/H F/H F/H F/H F/H
IP Class Class IP54 IP54 IP54 IP54 IP54 IP54 IP54 IP54
Motor Noice dBA/1m 55 55 55 55 55 55 55 55
Thermal Protection Optional √ √ √ √ √ √ √ √
Insulation Resistance MΩ ≥50 ≥50 ≥50 ≥50 ≥50 ≥50 ≥50 ≥50
Other Shafts are custom-made to customer specifications
