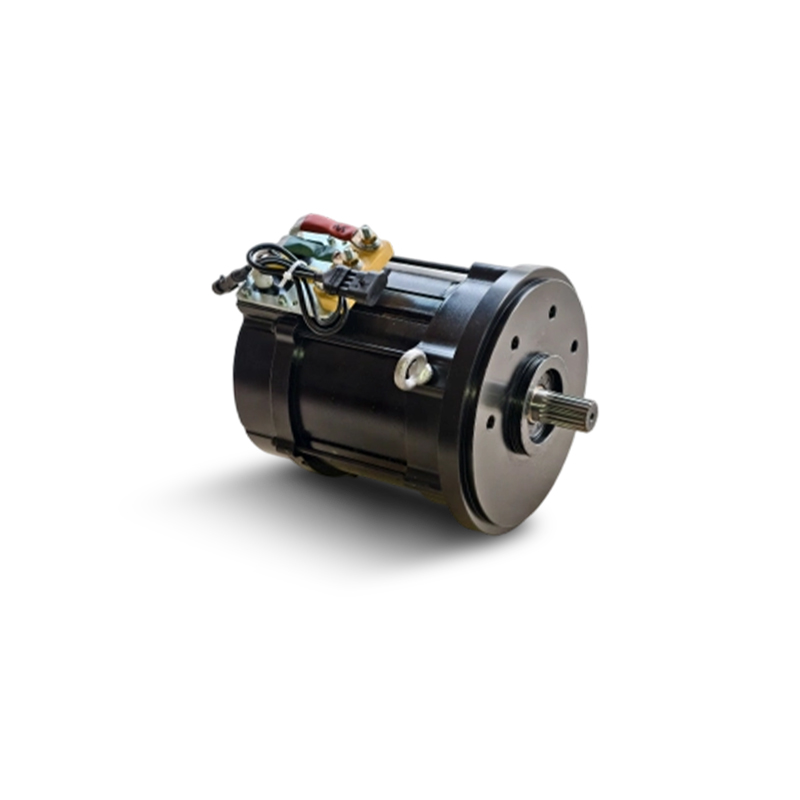

Counter Balance Drive Motor

Contact Us
PREV：Counter Balance Pump MotorNEXT：CLBD Car Lift Motor
Motor Data and Model Message
Motor model Motor model
LF015 LF048 LF055 LF043
Nominal Power kW 6 10 16.6 2.2
Nominal Voltage V(AC) 32 55 53 50
Nominal Current A 130 141 236 42
Frequency HZ 50 101 50 107.5
Nominal Speed RPM 1496 2992 1476 3171
Rated efficiency η% 0.85 90 91 84
Factor cosϕ 0.85 0.82 0.84 0.72
Nominal Torque N.m 40.7 31.9 107 6.6

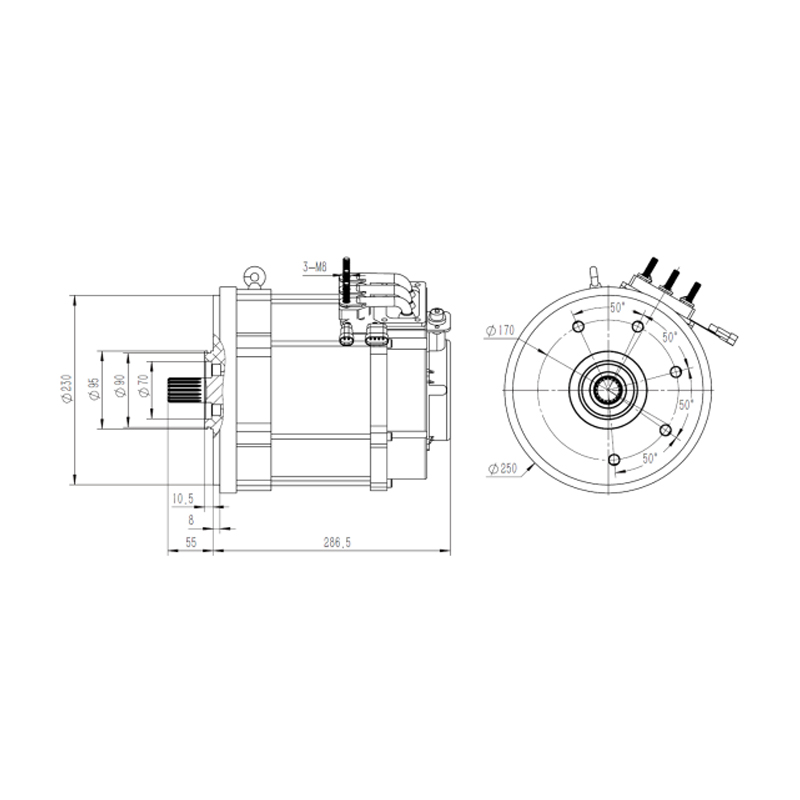

Motor Design
Duty Cycle Min 60 60 60 60
Insulation Class Class F/H F/H F/H F/H
IP Class Class IP54 IP54 IP54 IP54
Motor Noice dBA/1m 60 60 60 60
Thermal Protection Optional √ √ √ √
Insulation Resistance MΩ ≥50 ≥50 ≥50 ≥50
Other Shafts are custom-made to customer specifications
