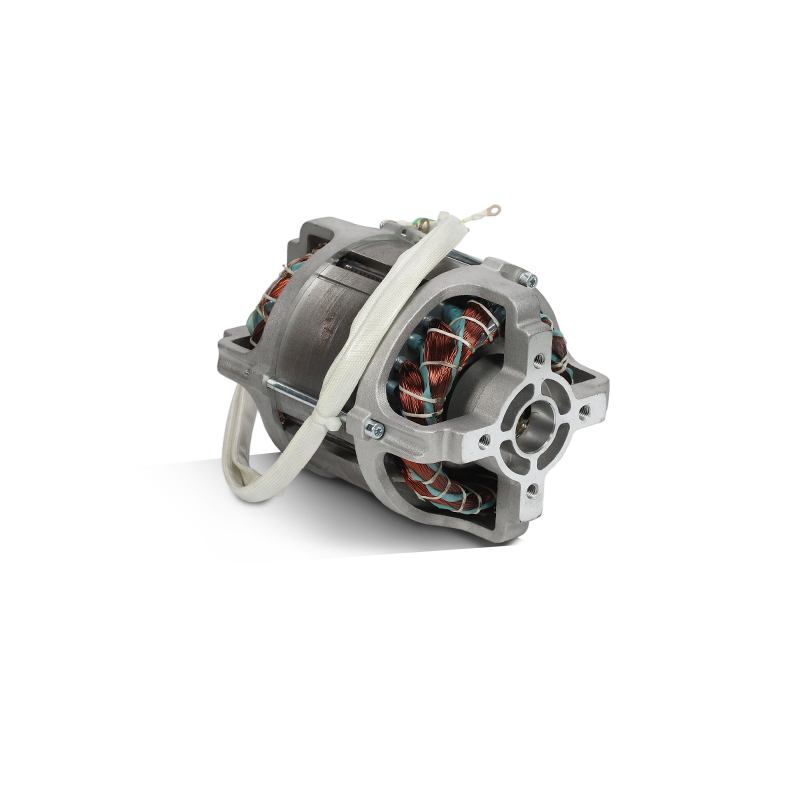

AJAB Sub-Oil A Motor

AJAB Sub-Oil A Motor is a power unit with the motor submerged in hydraulic fluid. It features excellent heat dissipation and insulation, reduced wear and noise, strong adaptability to harsh working conditions, and can drive hydraulic pumps stably.

General Machinery Industry: Hydraulic Pump

Contact Us
PREV：AJAB Sub-Oil B MotorNEXT：No next article
Motor Data and Model Message
Motor model Motor model
LV808 LV810 LV812 LV814 LV816 LV818
Nominal Power W 550 750 1100 1500 2200 3000
Nominal Voltage V 230/400 230/400 230/400 230/400 230/400 230/400
Nominal Current A 2.4/1.4 3.1/1.8 4.3/2.5 5.9/3.4 8.9/5.1 12.1/7.0
frequency HZ 50 50 50 50 50 50
Nominal Speed RPM 1362 1383 1390 1371 1344 1322
Rated efficiency η% 70 73 76 75 74 73
Factor cosϕ 0.81 0.83 0.84 0.85 0.84 0.85
Nominal Speed N.m 3.9 5.2 7.6 10.5 15.6 21.7
Tst/Tn 1.9 2 2 2 1.8 1.6
Tmax/Tn 1.9 2.1 2 2.2 2.1 2
Ist/In 3.5 4.2 4.7 4.3 3.8 3.9
Motor Design
Duty S3-10%/S3-15%/S3-20% S3-10%/S3-15%/S3-20% S3-10%/S3-15%/S3-20% S3-10%/S3-15%/S3-20% S3-10%/S3-15%/S3-20% S3-10%/S3-15%/S3-20%
Insulation Degree Class B/F B/F B/F B/F B/F B/F
IP Class Class IP00 IP00 IP00 IP00 IP00 IP00

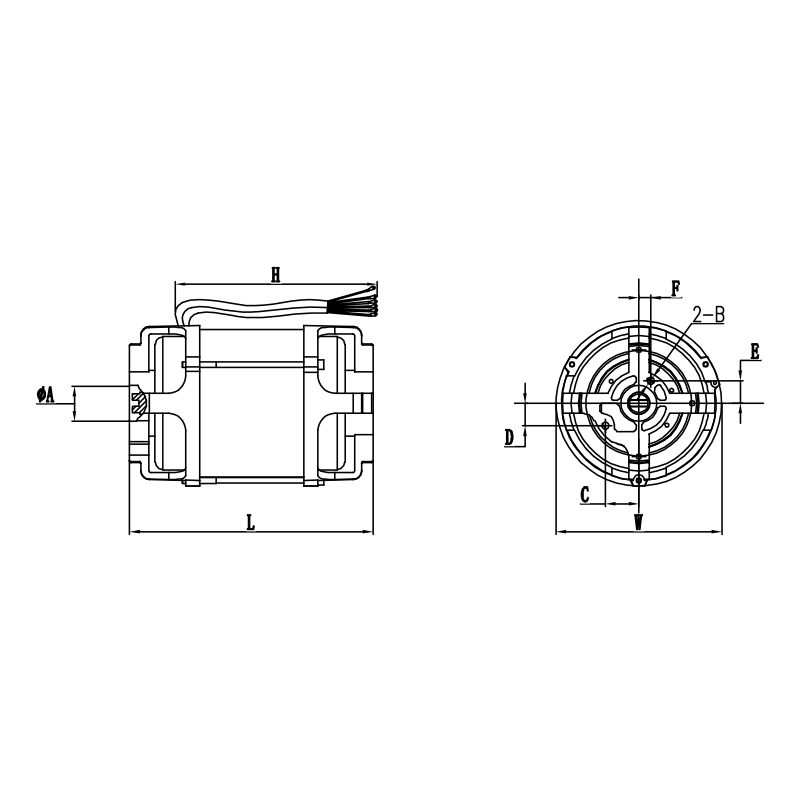

IP Class L(mm) 158 168 190 200 215 235
W(mm) 146.5 146.5 146.5 146.5 146.5 146.5
H(mm) 350 350 350 350 350 350
Installation dimensions A(mm) Φ32 Φ32 Φ32 Φ32 Φ32 Φ32
B M8 M8 M8 M8 M8 M8
C(mm) 29.7 29.7 29.7 29.7 29.7 29.7
D(mm) 20 20 20 20 20 20
E(mm) 20 20 20 20 20 20
F(mm) 10.3 10.3 10.3 10.3 10.3 10.3
other Any universal voltage and frequency can be customized Can be installed horizontally
The connection mode of      the client axis can be customized Patch strips are available
Oil-resistant and high-temperature resistant lead wires The altitude < 1000 meters above sea level
Rated Voltage (V): 220 (Custom voltages available; frequency: 50Hz, 60Hz or 50/60Hz)
