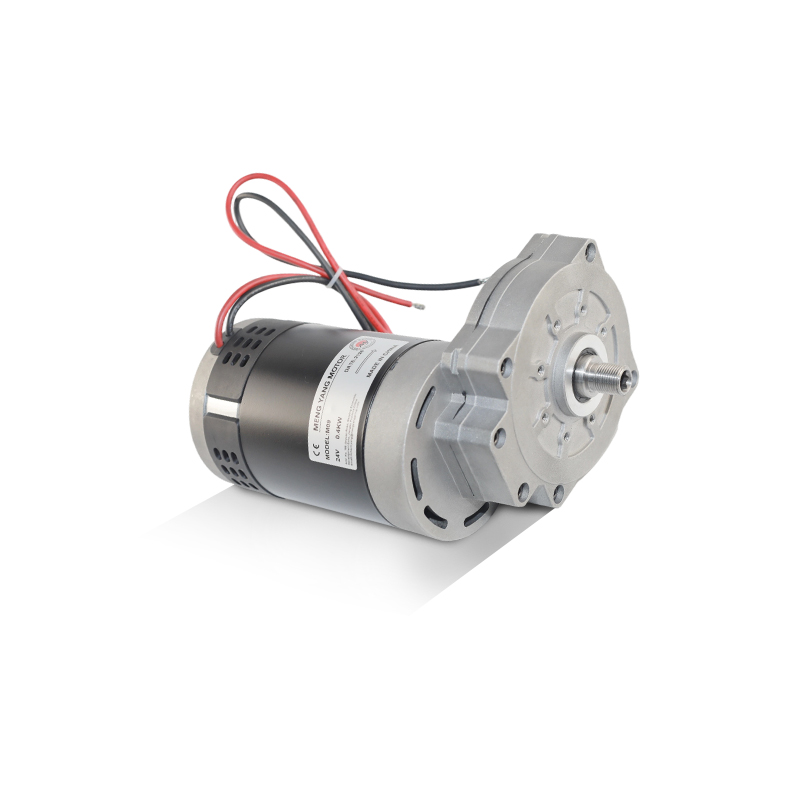

OD190.5 PM Series Sweeper Family Brush Disc Motor

Description: TBD

Application: Electric Sweeper

Contact Us
PREV：No previous articleNEXT：No next article
Motor Data and Model Message
Motor Data Motor Model
M09 M10 M11 M12 M13 M15
Nominal Power kW 0.4KW 0.4KW 0.55KW 0.55KW 0.55KW 0.55KW
Nominal Voltage V 24V 24V 24V 24V 24V 24V
Environmental Temperature °C -20-40°C -20-40°C -20-40°C -20-40°C -20-40°C -20-40°C
No-load Speed Rpm 235 235 215 215 185 185
No-load Current A 4 4 4 4 4 4
Nominal Torque N.m 21 21 30 30 30 30
Nominal Speed Rpm 180 180 180 180 150 150
Nominal Current A 25 25 30 30 30 30
Duty Cycle S% S1 S1 S1 S1 S1 S1
Water Tube WT √ √ √ √
Motor Rotation CW/CCW CW CW CW CW CW CW
Installation Type Keyway screw thread Keyway screw thread screw thread screw thread
Motor Noice dBA/1m <65 <65 <65 <65 <65 <65

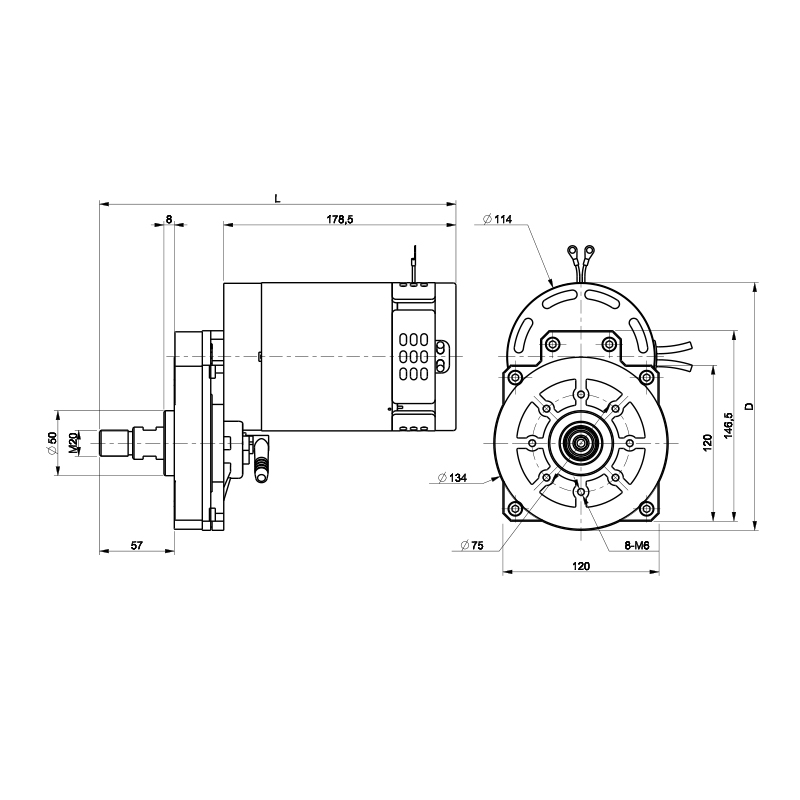

Motor size L（mm） 243 225 267.5 249.5 270.5 274
D（mm） 190.5 190.5 190.5 190.5 190.5 190.5
Motor Weight Kg 7.6 6.6 7.6 7.6 7.6 7.6
 Motor Design
Insulation Degree Class F F F F F F
Thermal Protection Optional √ √ √ √ √ √
IP Class Class IP20 IP20 IP20 IP20 IP20 IP20
Excitation Wound PM PM PM PM PM PM
Vibration mm/S <2 <2 <2 <2 <2 <2
Insulation Resistance MΩ >10 >10 >10 >10 >10 >10
Motor Endurance Hrs 2000 2000 2000 2000 2000 2000
