ZD035-0004-HT-000 Brushed DC Motors

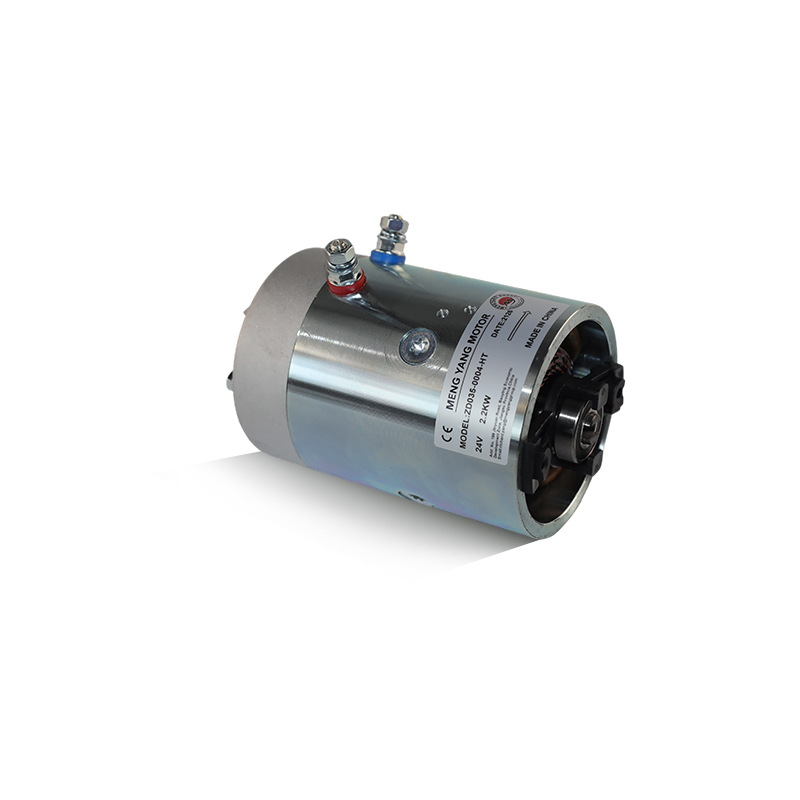

This DC motor features an industrial-grade design with a 114mm outer diameter, a robust cylindrical housing, and a flange-mounting configuration. Its design is optimized for sustained medium-to-heavy-duty operation; an excellent heat dissipation mechanism ensures thermal balance during prolonged use, preventing performance degradation caused by overheating. Additionally, the motor boasts an IP54 protection rating, effectively resisting the ingress of dust and moisture common in industrial environments, thereby enhancing structural stability and service life under demanding operating conditions. The motor excels in safety and operational stability, utilizing Class F insulation and offering optional thermal protection to ensure the long-term reliability of the electrical system. It operates with a noise level below 72 dB (measured at 1 meter) and a vibration velocity under 2 mm/s; this low-noise, low-vibration performance not only improves the working environment but also minimizes mechanical wear.
