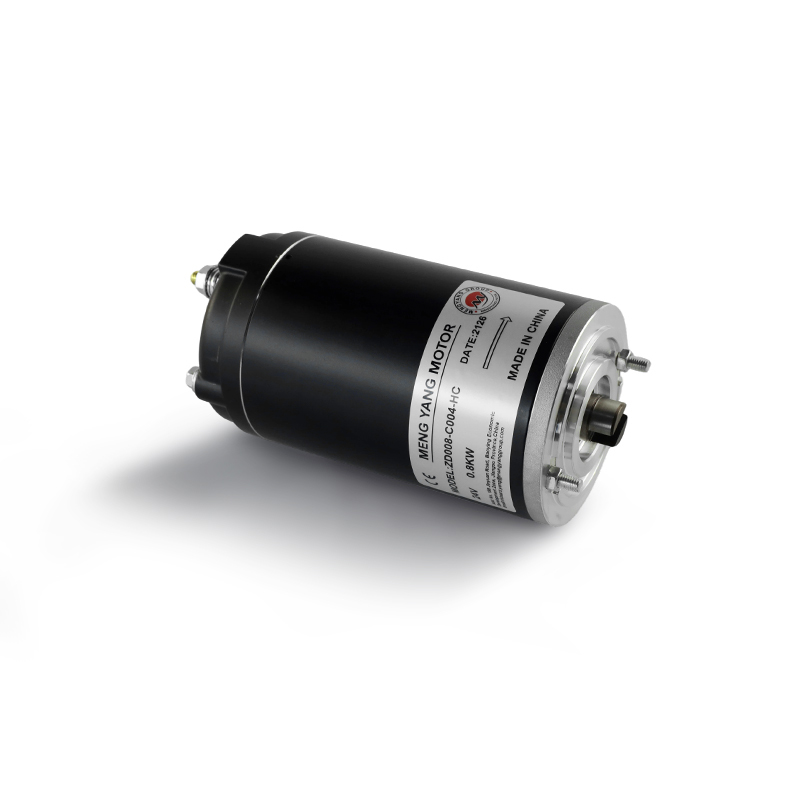

OD79 PM C Series

Description：OD79 C-Cover is a compact high-efficiency permanent magnet DC motor with 79mm outer diameter. It adopts sturdy round housing and flange mounting, designed for stable continuous operation with low heat generation and high energy efficiency.

Features：- Rated voltage: 12/24/48V DC
- Power range: 200W–1000W, high starting torque
- Stable low-speed performance and reliable load capacity
- Wide speed regulation, suitable for long-time continuous running
- IP54 protection, high mechanical rigidity and durability
- Ideal for AGV robots, logistics equipment, automation machinery and light-duty industrial equipment

Application: Electric Forklift Traction Motor

Contact Us
PREV：OD114 Wound Field V SeriesNEXT：OD79 PM A Series
Motor Data and Model Message
Motor Data Motor Model
ZD071 ZD075 ZD008 ZD112 ZD102
Nominal Power kW 0.5 0.8 0.8 0.5 0.8
Nominal Voltage V 12 12 24 48 48
Environmental Temperature °C -20-40°C -20-40°C -20-40°C -20-40°C -20-40°C
No-load Speed Rpm 4200 4800 4600 3600 4600
No-load Current A 10 14 5 2 2.5
Nominal Torque N.m 2 2 2 2 2
Nominal Speed Rpm 2300 3400 3100 2500 3100
Nominal Current A 72 90 42 16 23
Duty Cycle S2 2.5MIN 2MIN 2MIN 2MIN 2.5MIN
S3 10%ED 10%ED 10%ED 10%ED 10%ED
Motor Rotation CW/CCW CW CCW CW CW CW
Motor Noice dBA/1m 68 68 68 68 68

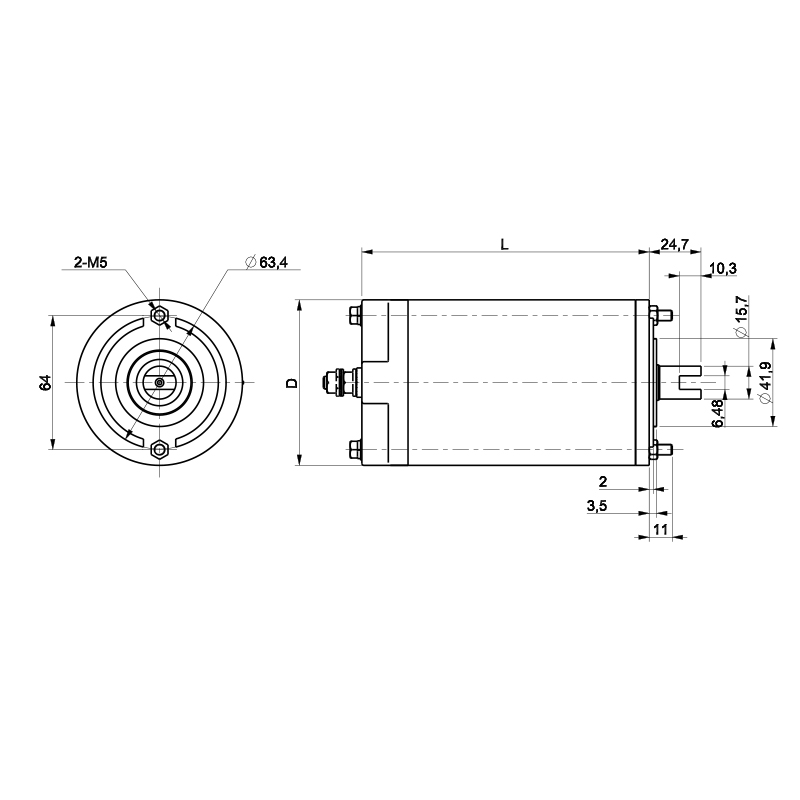

Motor size L（mm） 137 137 137 137 137
D（mm） 79 79 79 79 79
Motor Weight Kg 2.6 2.6 2.6 2.6 2.6
Motor Design
Insulation Degree Class F F F F F
Thermal Protection Optional √ √ √ √ √
IP Class Class IP54 IP54 IP54 IP54 IP54
Excitation Wound PM PM PM PM PM
Vibration mm/S <1.6 <1.6 <1.6 <1.6 <1.6
Insulation Resistance MΩ >10 >10 >10 >10 >10
Motor Endurance Hrs 400 400 400 400 400
