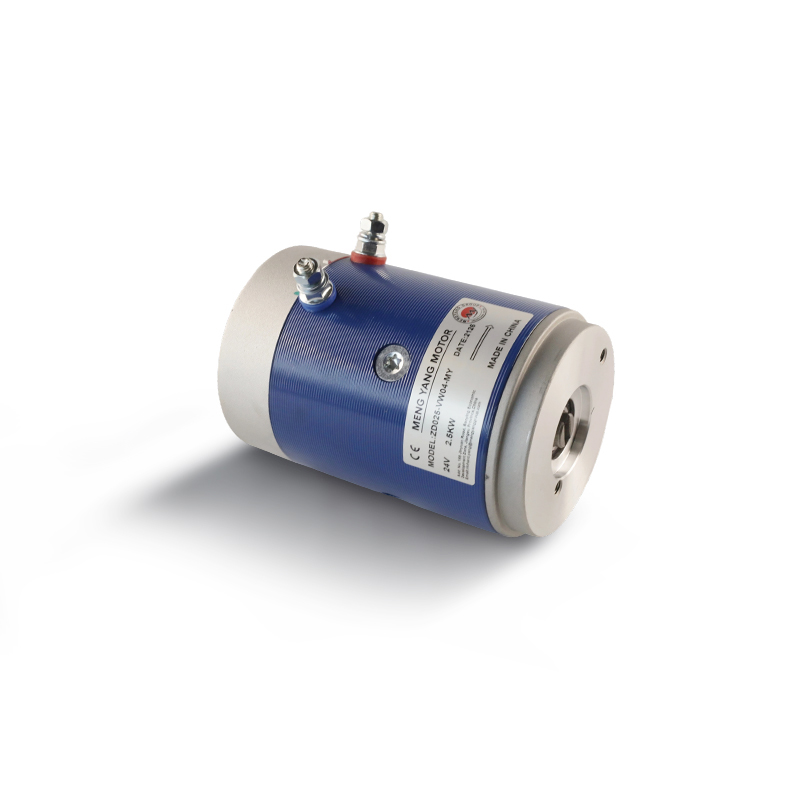

OD114 Wound Field V Series

Description： OD114 V-Cover Wound Field DC motor features 114mm outer diameter. It adopts sturdy round housing, V-type end cover and flange mounting, designed for long-term continuous load operation with reliable heat dissipation.

Features： Rated voltage: 24/48/72V DC
Power range: 500W–2200W, strong starting torque
Stable heavy-load performance and excellent overload capacity
Wide speed regulation, suitable for long-time continuous running
IP54 protection, high mechanical rigidity and durability
Ideal for electric forklifts, industrial vehicles, engineering machinery and industrial equipment

Application： Vehicle Tail Lift Power Unit

Contact Us
PREV：OD114 Wound field H SeriesNEXT：OD79 PM C Series
Motor Data and Model Message
Motor Data Motor Model
ZD048 ZD064 ZD025 ZD010 ZD012 ZD096 ZD033 ZD021 ZD085 ZD086
Nominal Power kW 1.6 2 2.5 2 2 2.2 2.5 2.5 2.8 3
Nominal Voltage V 12 12 24 48 72 24 12 24 24 24
Environmental Tempeature °C -20-40°C -20-40°C -20-40°C -20-40°C -20-40°C -20-40°C -20-40°C -20-40°C -20-40°C -20-40°C
No-load Speed Rpm 4200 5800 6200 4800 5800 6200 6200 6200 8000 4200
No-load Current A 35 40 20 12 10 20 50 35 40 20
Nominal Torque N.m 6 8 10 7 7 10 10 10 9 11
Nominal Speed Rpm 2650 2600 2650 2850 3200 2250 2400 2950 3100 2850
Nominal Current A 185 265 135 70 50 135 280 170 170 170
Duty Cycle S2 2Min 2Min 2Min 2Min 2Min 2Min 5Min 2Min 5Min 4Min
S3 8%ED 8%ED 8%ED 8%ED 8%ED 8%ED 13%ED 8%ED 13%ED 15%ED
Motor Rotation CW/CCW CW CW CW CW CW CW CW CW CW CW
Motor Noice dBA/1m 72 72 72 72 72 72 72 72 72 82

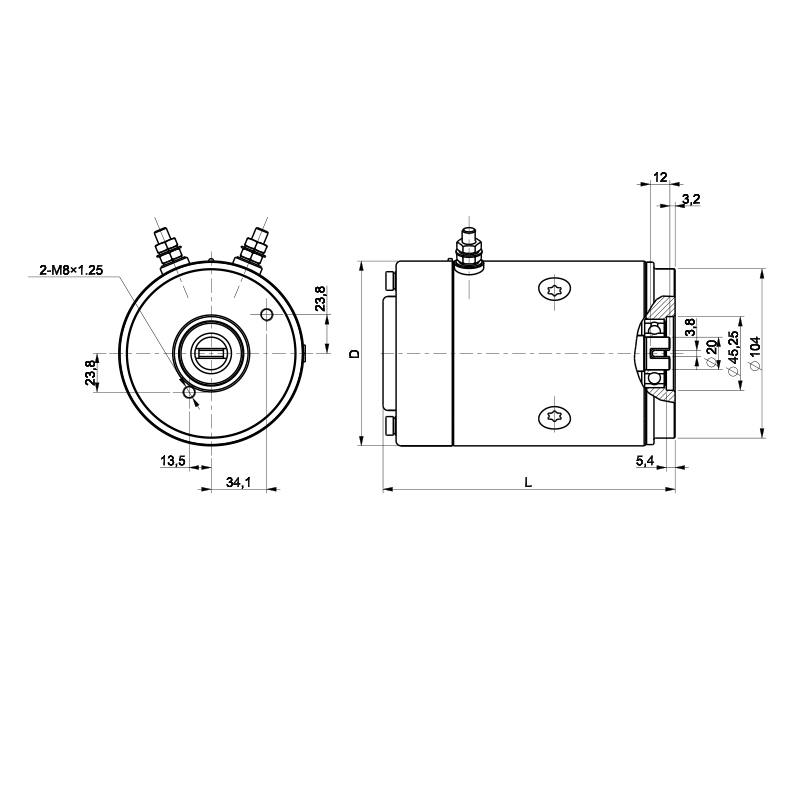

Motor size L（mm） 178.8 178.8 178.8 178.8 178.8 209.8 195.8 178.8 220.6 229
D（mm） 114 114 114 114 114 114 114 114 114 127
Motor Weight Kg 6.9 6.9 6.9 6.9 6.9 9 8.4 6.9 9.4 12
Motor Design
Insulation Degree Class F F F F F F F F F F
Thermal Protection Optional √ √ √ √ √ √ √ √ √ √
IP Class Class IP54 IP54 IP54 IP54 IP54 IP54 IP54 IP54 IP54 IP23
Excitation Wound Compound Compound Compound Compound Compound Compound Series Compound Series Compound
Vibration mm/S <2 <2 <2 <2 <2 <2 <2 <2 <2 <3.8
Insulation Resistance MΩ >10 >10 >10 >10 >10 >10 >10 >10 >10 >10
Motor Endurance Hrs 400 400 400 400 400 400 800 400 800 800
