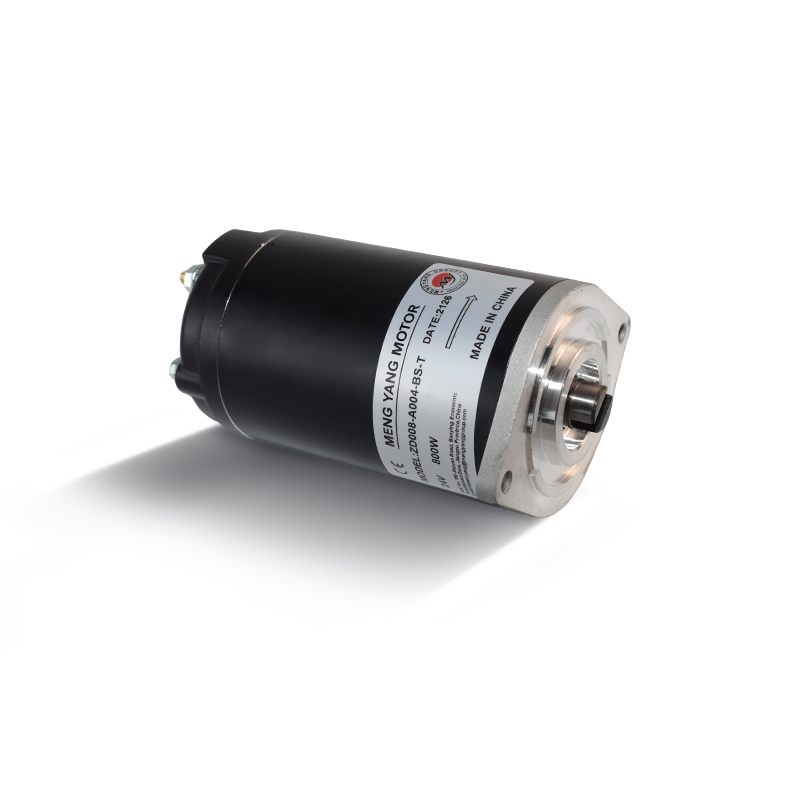

OD79 PM A Series

Description： OD79 A-Cover is a compact high-efficiency permanent magnet DC motor with 79mm outer diameter. It adopts sturdy round housing and flange mounting, designed for stable continuous operation with low heat generation and high energy efficiency.

Features：- Rated voltage: 12/24/48V DC
- Power range: 200W–1000W, high starting torque
- Stable low-speed performance and reliable load capacity
- Wide speed regulation, suitable for long-time continuous running
- IP54 protection, high mechanical rigidity and durability
- Ideal for AGV robots, logistics equipment, automation machinery and light-duty industrial equipment

Application： Electric Forklift Traction Motor

Contact Us
PREV：OD79 PM C SeriesNEXT：OD127 Wound Field BL Series
Motor Data and Model Message
 Motor Data Motor Model
ZD087 ZD089 ZD071 ZD007 ZD075 ZD088 ZD090 ZD072 ZD008 ZD076 ZD066 ZD067 ZD112 ZD102
Nominal Power kW 0.15 0.3 0.5 0.8 0.8 0.15 0.3 0.5 0.8 0.8 0.15 0.3 0.5 0.8
Nominal Voltage V 12 12 12 12 12 24 24 24 24 24 48 48 48 48
Environmental Temperature °C -20-40°C -20-40°C -20-40°C -20-40°C -20-40°C -20-40°C -20-40°C -20-40°C -20-40°C -20-40°C -20-40°C -20-40°C -20-40°C -20-40°C
No-load Speed Rpm 2500 2500 4200 4200 4600 2500 2500 4200 4600 4600 3200 2800 3600 4600
No-load Current A 2 5 10 12 14 1.2 2 6 5 5 1.2 1 2 2.5
Nominal Torque N.m 1.2 1.6 2 2 2 0.8 1.6 2 2 2 0.8 1.6 2 2
Nominal Speed Rpm 1200 1800 2300 3100 3400 1650 1800 2400 3100 3400 1650 1800 2500 3100
Nominal Current A 25 40 72 85 90 10 20 36 42 50 5 10 16 23
Duty Cycle S2 20MIN 9MIN 2.5MIN 2.5MIN 2MIN 20MIN 3MIN 2.5MIN 2.5MIN 2MIN 6MIN 3MIN 3MIN 2.5MIN
S3 30%ED 18%ED 10%ED 10%ED 10%ED 30%ED 10%ED 10%ED 10%ED 10%ED 20%ED 10%ED 10%ED 10%ED
Motor Rotation CW/CCW CCW CCW CW CW CW CCW CCW CW CW CW CCW CCW CCW CW
Motor Noice dBA/1m 68 68 68 68 68 68 68 68 68 68 68 68 68 68

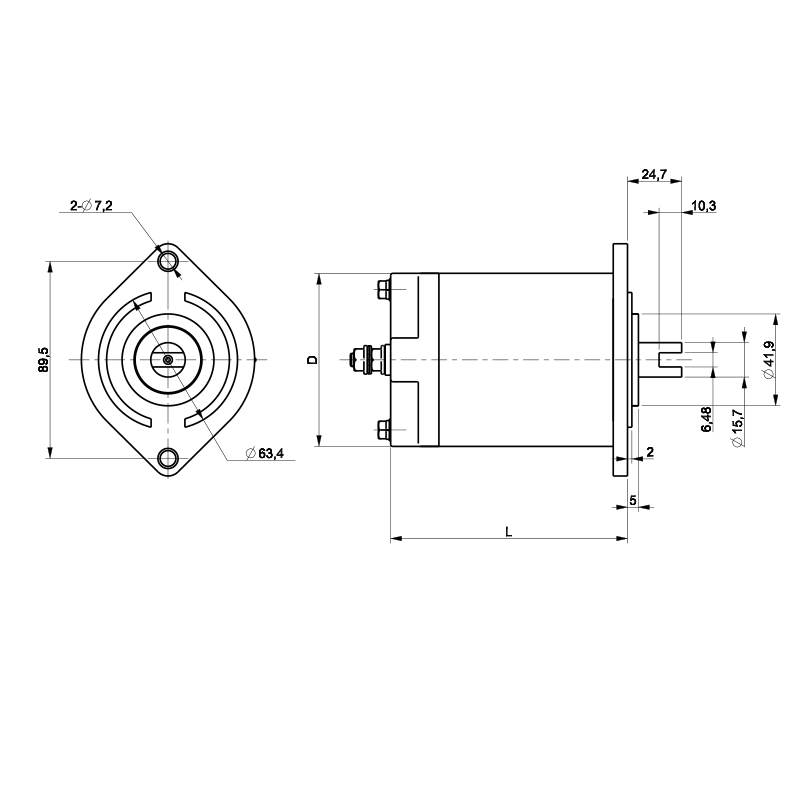

Motor size L（mm） 108 137 137 137 137 108 137 137 137 137 108 137 137 137
D（mm） 78.5 78.5 78.5 78.5 79 78.5 78.5 78.5 78.5 79 78.5 78.5 78.5 78.5
Motor Weight Kg 2.1 2.6 2.6 2.6 2.6 2.1 2.6 2.6 2.6 2.6 2.1 2.6 2.6 2.6
Motor Design
Insulation Degree Class F F F F F F F F F F F F F F
Thermal Protection Optional √ √ √ √ √ √ √ √ √ √ √ √ √ √
IP Class Class IP65 IP65 IP65 IP65 IP65 IP65 IP65 IP65 IP54 IP65 IP65 IP65 IP65 IP54
Excitation Wound PM PM PM PM PM PM PM PM PM PM PM PM PM PM
Vibration mm/S <1.6 <1.6 <1.6 <1.6 <1.6 <1.6 <1.6 <1.6 <1.6 <1.6 <1.6 <1.6 <1.6 <1.6
Insulation Resistance MΩ >10 >10 >10 >10 >10 >10 >10 >10 >10 >10 >10 >10 >10 >10
Motor Endurance Hrs 400 400 400 400 400 400 400 400 400 400 400 400 400 400
