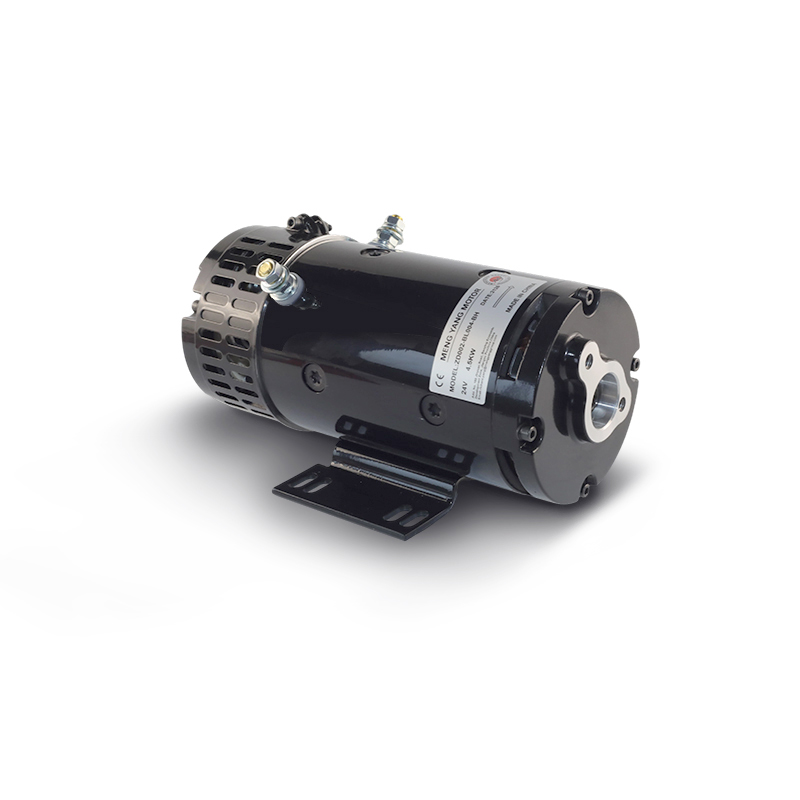

OD127 Wound Field BL Series

Description： OD127 is a medium-heavy duty industrial excited DC motor with 127mm outer diameter. It adopts sturdy round housing and flange mounting, designed for long-term continuous high-load operation with efficient heat dissipation.

Features：- Rated voltage: 24/48V DC
- Power range: 600W–2500W, strong starting torque
- Stable heavy-load performance and excellent overload capacity
- Wide speed regulation, suitable for long-time continuous running
- IP54 protection, high mechanical rigidity and durability
- Ideal for electric forklifts, industrial vehicles, engineering machinery and high-power industrial equipment

Application：Aerial Work Platform

Contact Us
PREV：OD79 PM A SeriesNEXT：No next article
Motor Data and Model Message
Motor Data Motor Model
ZD002 ZD061
Nominal Power kW 4.5 4
Nominal Voltage V 24 48
Environmental Temperature °C -20-40°C -20-40°C
No-load Speed Rpm 7200 6800
No-load Current A 45 20
Nominal Torque N.m 14 14
Nominal Speed Rpm 2800 2800
Nominal Current A 210 110
Duty Cycle S2 12MIN 6MIN
S3 20%ED 12%ED
Motor Rotation CW/CCW CW CW
Motor Noice dBA/1m 90 90

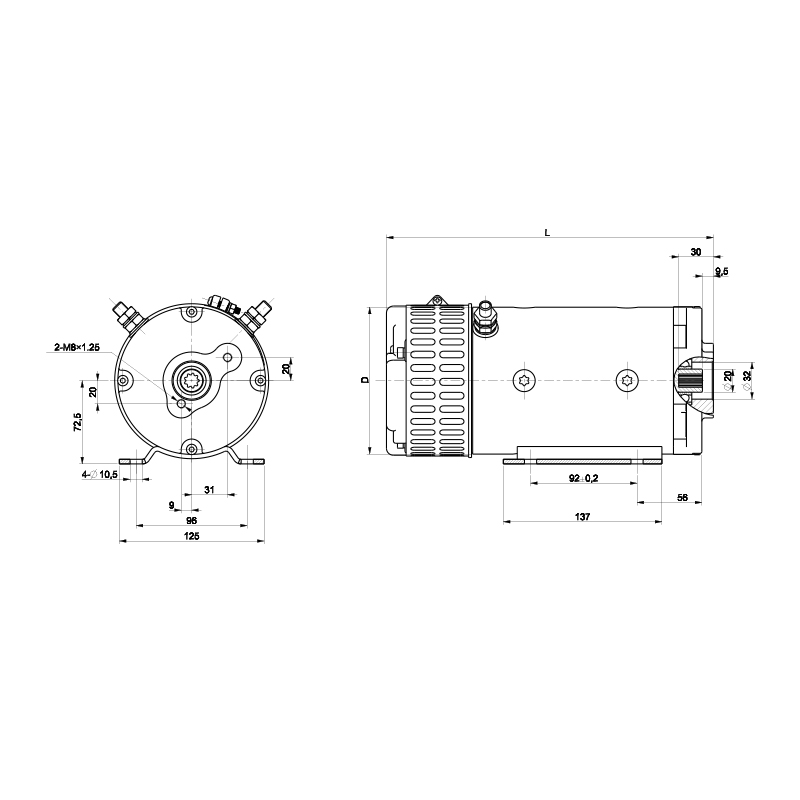

Motor size L（mm） 282.5 282.5
D（mm） 127 127
Motor Weight Kg 15.5 15.5
Motor Design
Insulation Degree Class H H
Thermal Protection Optional √ √
IP Class Class IP23 IP23
Excitation Wound Series Series
Vibration mm/S <5 <5
Insulation Resistance MΩ >20 >20
Motor Endurance Hrs 800 800
