OD78 PM AB Series

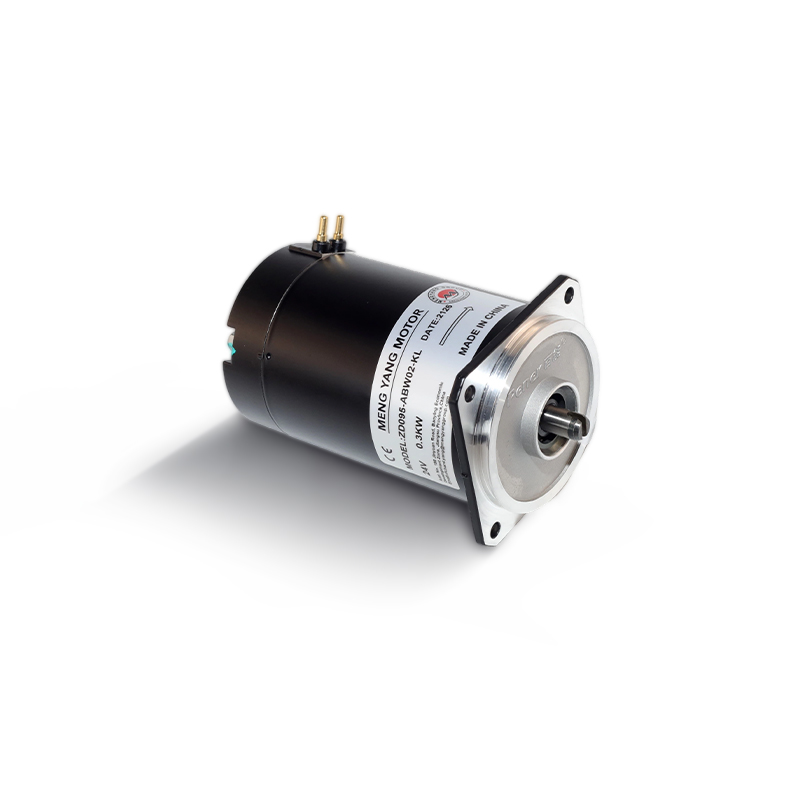

Description： OD78 is a compact high-efficiency permanent magnet DC motor with 78mm outer diameter. It adopts sturdy round housing and flange mounting, designed for long-term stable operation with low energy consumption and efficient heat dissipation.

Features：- Rated voltage: 12/24V DC
- Power range: 150W–800W, strong starting torque
- Stable low-speed performance and reliable load capacity
- Wide speed regulation, suitable for long-time continuous running
- IP54 protection, high mechanical rigidity and durability
- Ideal for AGV equipment, logistics conveyors, automation machinery and light industrial equipment

Application： Commercial Vehicle Cab Tilt Motor

Contact Us
PREV：OD127 Wound FieldNEXT：OD127 Wound Field BY Series
Motor Data and Model Message
Motor Data Motor Model
ZD094B ZD106 ZD095
Nominal Power kW 0.3 0.35 0.3
Nominal Voltage V 24 24 24
Environmental Tempeature °C -20-40°C -20-40°C -20-40°C
No-load Speed Rpm 5000 4100 5000
No-load Current A 2.1 3.0  2.1
Nominal Torque N.m 85 80 85
Nominal Speed Rpm 3400 3500 3600
Nominal Current A 20 22 20
Duty Cycle S2 3MIN 3MIN 3MIN
S3 10%ED 10%ED 10%ED
Motor Rotation CW/CCW CW CW CW
Motor Noice dBA/1m 56 60 56

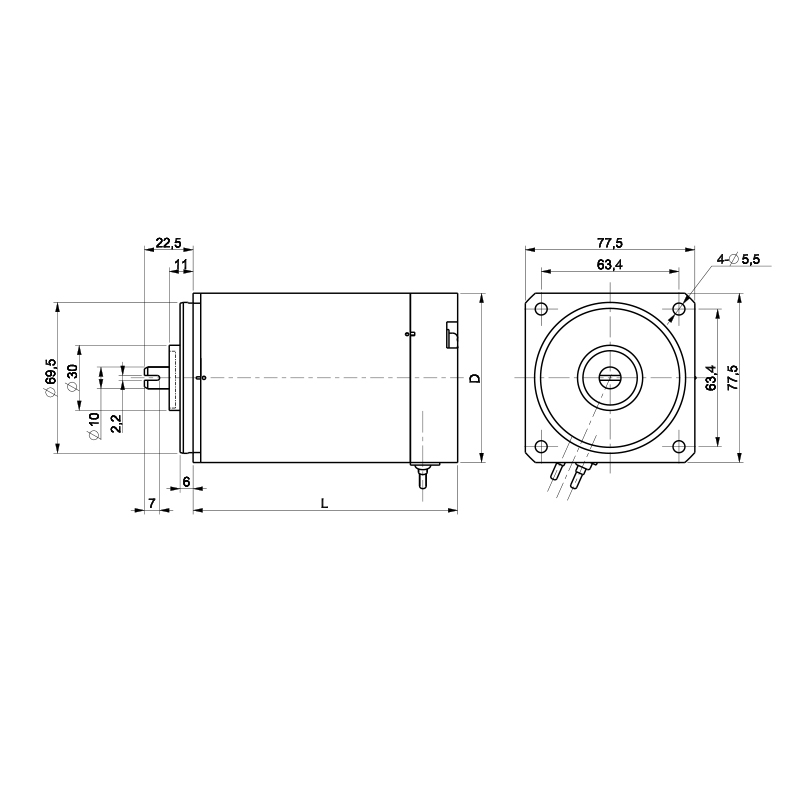

Motor size L（mm） 165.8 122 122
D（mm） 78 78 78
Motor Weight Kg 2 1.8 1.8
Motor Design
Insulation Degree Class F F F
Thermal Protection Optional √ √ √
IP Class Class IP54 IP66 IP67
Excitation Wound PM PM PM
Vibration mm/S <1.3 <1.3 <1.3
Insulation Resistance MΩ >10 >10 >10
Motor Endurance Hrs 400 400 400
