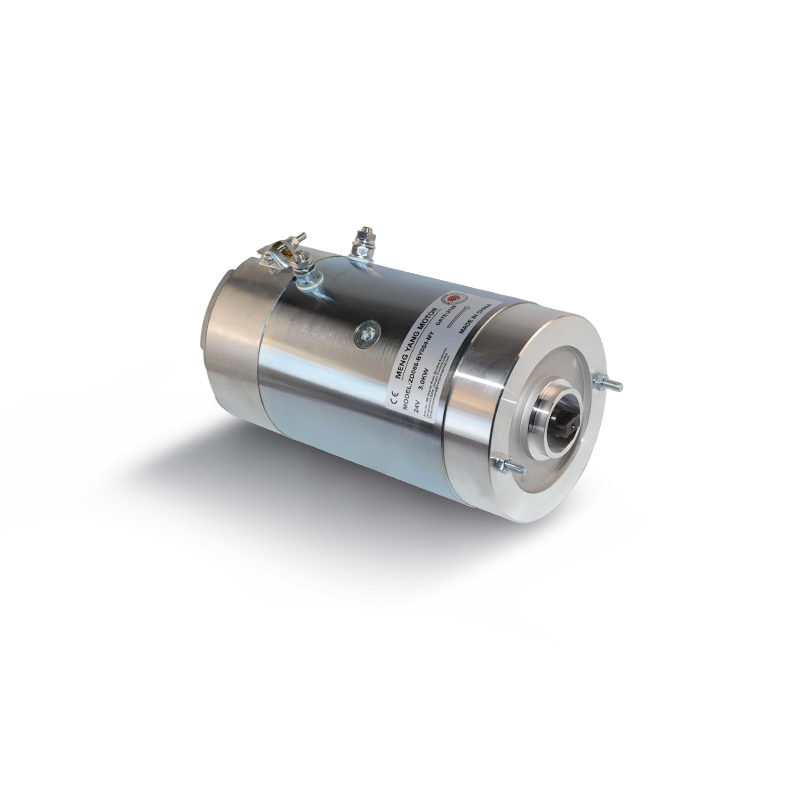

OD127 Wound Field BY Series

Description： OD127 is a Wound Field  DC motor with 127mm outer diameter. It adopts sturdy round housing and flange mounting, designed for long-term continuous high-load operation with efficient heat dissipation.

Features：- Rated voltage: 24/48V DC
- Power range: 600W–2500W, strong starting torque
- Stable heavy-load performance and excellent overload capacity
- Wide speed regulation, suitable for long-time continuous running
- IP54 protection, high mechanical rigidity and durability
- Ideal for electric forklifts, industrial vehicles, engineering machinery and high-power industrial equipment

Application： power pack unit， Warehouse Stacker

Contact Us
PREV：OD78 PM AB SeriesNEXT：OD114 Wound field H Series
Motor Data and Model Message
Motor Data Motor Model
ZD084 ZD086 ZD062
Nominal Power kW 3.2KW 3KW 3.2KW
Nominal Voltage V 24V 24V 48V
Environmental Tempeature °C -20-40°C -20-40°C -20-40°C
No-load Speed Rpm 7600 4200 6800
No-load Current A 35 20 20
Nominal Torque N.m 9.7 10 9.7
Nominal Speed Rpm 3250 2850 3150
Nominal Current A 175 165 90
Duty Cycle S2 5MIN 5MIN 5MIN
S3 16%ED 9%ED 16%ED
Motor Rotation CW/CCW CW CW CW
Motor Noice dBA/1m 82 82 82

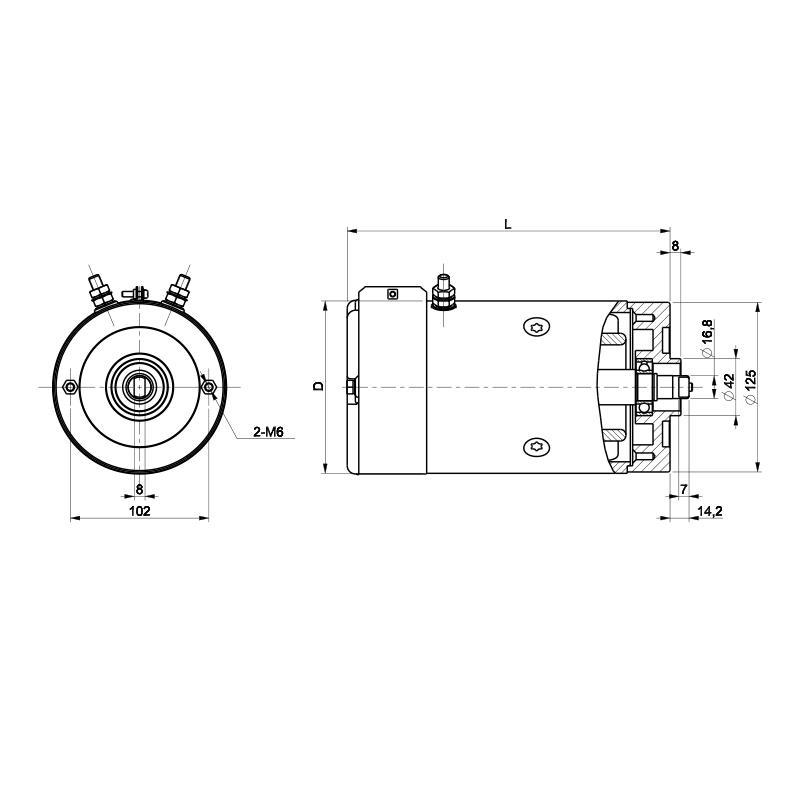

Motor size L（mm） 237.5 237.5 237.5
D（mm） 127 127 127
Motor Weight Kg 12 12 12
Motor Design
Insulation Degree Class F F F
Thermal Protection Optional √ √ √
IP Class Class IP21 IP54 IP21
Excitation Wound Series Compound Series
Vibration mm/S <3.8 <3.8 <3.8
Insulation Resistance MΩ >10 >10 >10
Motor Endurance Hrs 800 800 800
