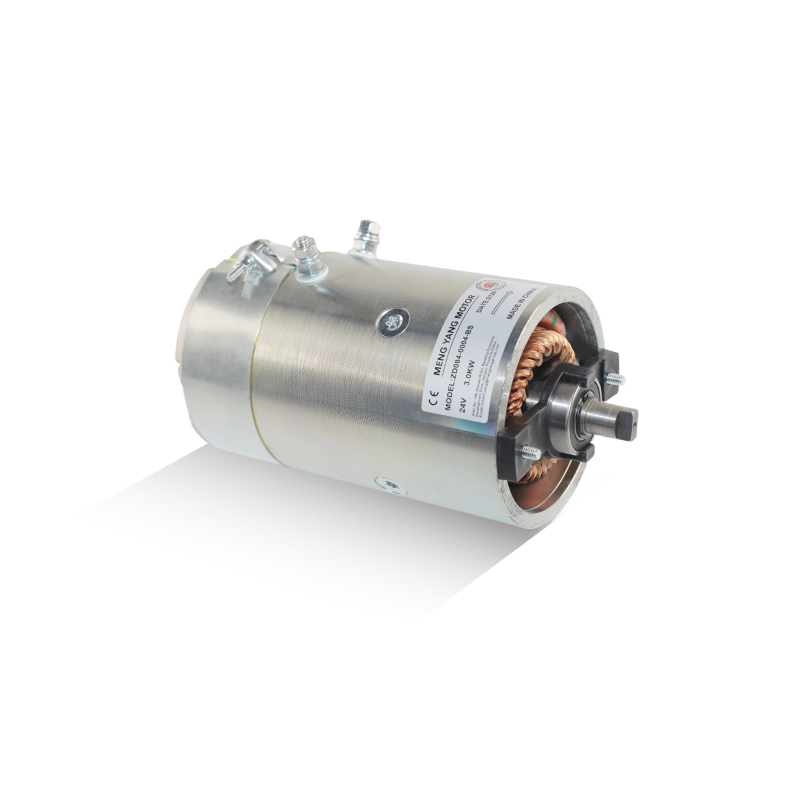

OD127 Wound Field

Description: OD127 is wound field series DC motor with 127mm outer diameter. Built with heavy‑duty round housing and flange mounting, it supports continuous heavy‑load operation with reliable heat dissipation.

Features: Rated voltage: 24/48V DC
Power range: 3000W–3200W, strong starting torque
Stable heavy‑load performance and excellent overload capacity
Wide speed regulation, suitable for long‑time continuous running
IP54 protection, high mechanical rigidity and durability
Applied in electric forklifts, industrial vehicles, heavy‑duty machinery and automation equipment

Application: Power Pack Unit，Aerial Work Platform

Contact Us
PREV：No previous articleNEXT：OD78 PM AB Series
Motor Data and Model Message
Motor Data Motor Model
ZD084 ZD062 ZD084 ZD086
Nominal Power kW 3.2  3.2 3 3
Nominal Voltage V 24 48 24 24
Environmental Temperature °C -20-40°C -20-40°C -20-40°C -20-40°C
No-load Speed Rpm 7600 6800 6500 4200
No-load Current A 35 20 25 20
Nominal Torque N.m 9.7 9.7 10 10
Nominal Speed Rpm 3250 3250 3000 2850
Nominal Current A 175 95 165 165
Duty Cycle S2 5MIN 5MIN 6MIN 5MIN
S3 16%ED 16%ED 11%ED 9%ED
Motor Rotation CW/CCW CCW CW CW CW
Motor Noice dBA/1m 82 82 82 82

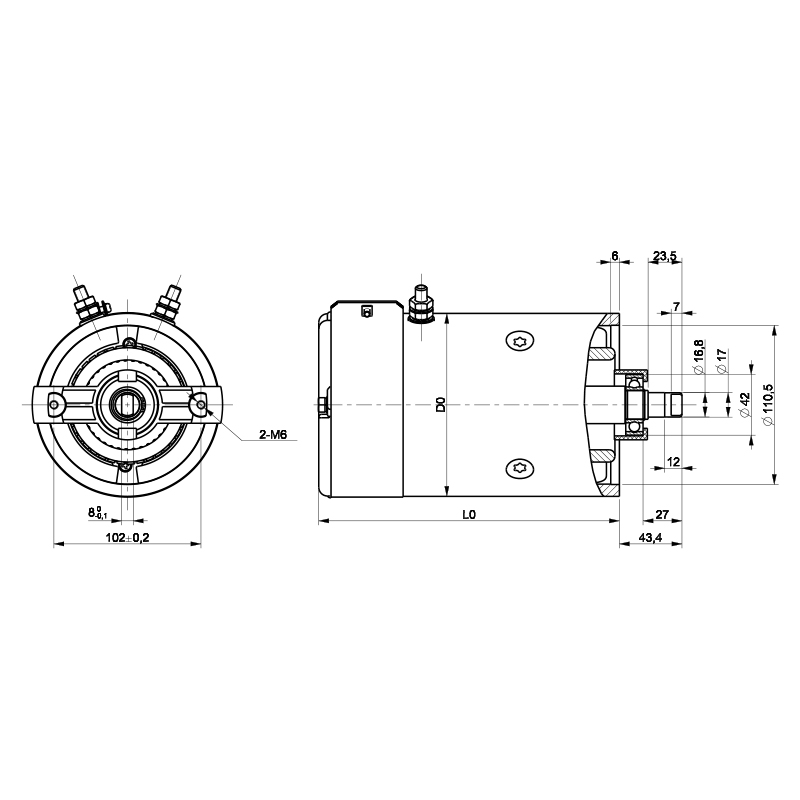

Motor size L（mm） 225 223.8 208.5 208.5
D（mm） 125 127 127 127
Motor Weight Kg 12 12 12 12
Motor Design
Insulation Degree Class F F F F
Thermal Protection Optional √ √ √ √
IP Class Class IP21 IP21 IP43 IP54
Excitation Wound Series Series Series Compound
Vibration mm/S <3.8 ≤3.8 ≤3.8 ≤3.8
Insulation Resistance MΩ >10 >10 >10 >10
Motor Endurance Hrs 800 800 800 800
