OD114 Wound field H Series

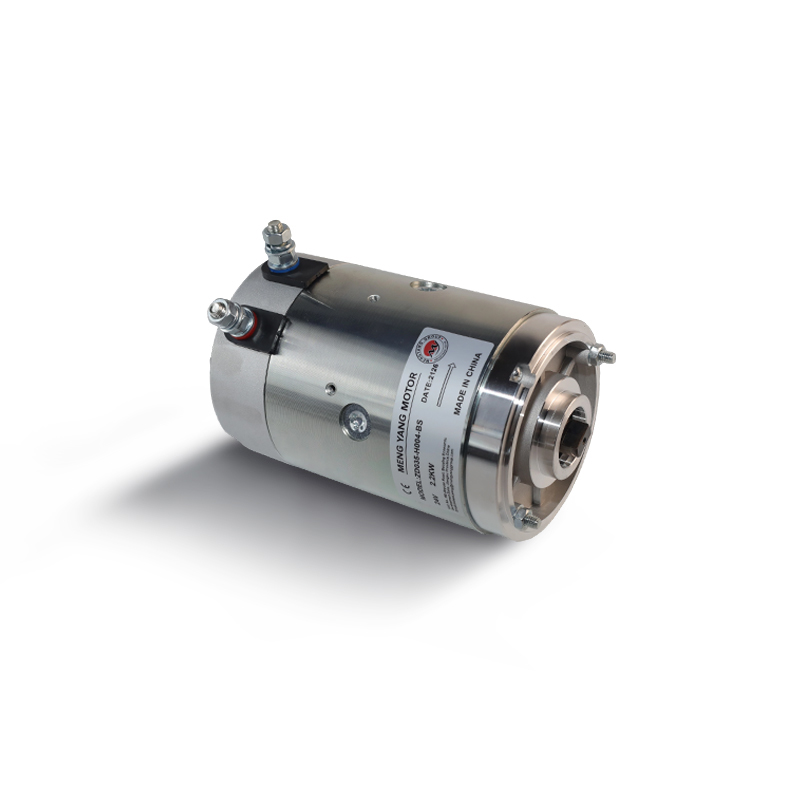

Description： OD114 H-Cover Wound field DC motor features 114mm outer diameter. It adopts sturdy round housing, H-type end cover and flange mounting, designed for long-term continuous load operation with reliable heat dissipation.|

Features： Rated voltage: 24/48V DC
Power range: 500W–2200W, strong starting torque
Stable heavy-load performance and excellent overload capacity
Wide speed regulation, suitable for long-time continuous running
IP54 protection, high mechanical rigidity and durability
Ideal for electric forklifts, industrial vehicles, engineering machinery and industrial equipment

Application： Power Pack Unit， Warehouse Stacker

Contact Us
PREV：OD127 Wound Field BY Series NEXT：OD114 Wound Field V Series

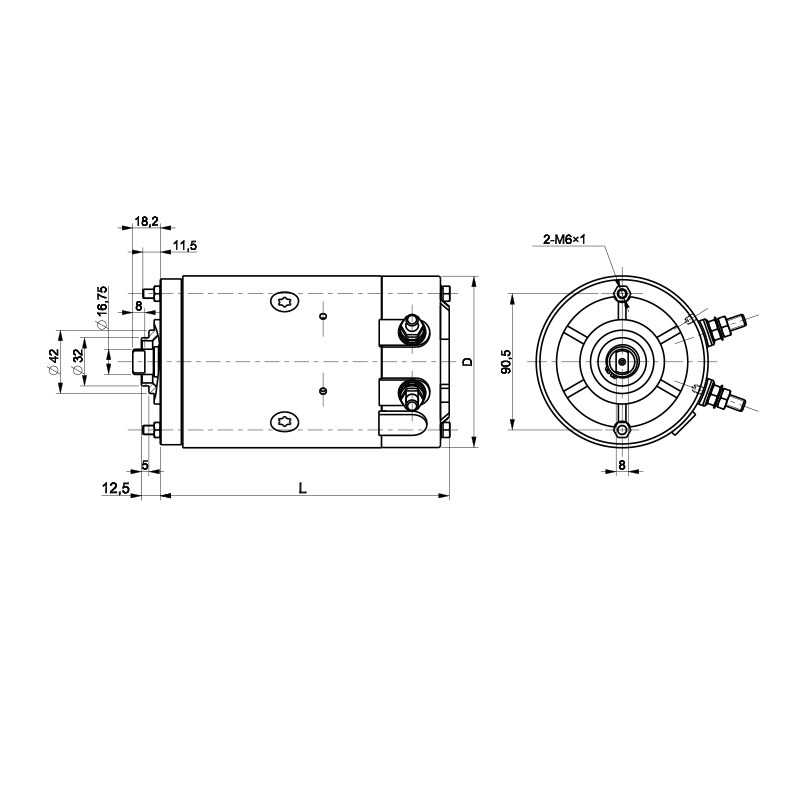

Motor Data and Model Message
Motor Data Motor Model
ZD053 ZD036 ZD034 ZD033 ZD054 ZD035 ZD085 ZD010 ZD132
Nominal Power kW 1.2 1.6 2 2 1.2 2.2 2.8 2 3
Nominal Voltage V 12 12 12 12 24 24 24 48 48
Environmental Tempeature °C -20-40°C -20-40°C -20-40°C -20-40°C -20-40°C -20-40°C -20-40°C -20-40°C -20-40°C
No-load Speed Rpm 5500 6200 3800 6200 6000 5500 8200 4800 5200
No-load Current A 35 45 40 50 20 20 25 15 20
Nominal Torque N.m 4.7 6 8 5.4 3 7.5 10 7 8
Nominal Speed Rpm 2400 2650 2300 2586 4500 2600 3000 2850 3800
Nominal Current A 160 200 210 200 85 125 175 70 95
Duty Cycle S2 1.2MIN 2MIN 2MIN 7.5MIN 1.2MIN 2MIN 5MIN 2MIN 6MIN
S3 4.5%ED 5%ED 8%ED 20%ED 4.5%ED 5%ED 13%ED 8%ED 10%ED
Motor Rotation CW/CCW CW CW CW CW CW CW CW CW CW
Motor Noice dBA/1m 72 72 72 72 72 72 72 72 72
Motor size L（mm） 153 174.3 174.3 191.3 153 174.3 206.1 177.5 218.1
D（mm） 114 114 114 114 114 114 114 114 114
Motor Weight Kg 5.1 7.1 7.6 8.2 5.1 7.1 9.4 7.5 9.4
Motor Design
Insulation Degree Class F F F F F F F F F
Thermal Protection Optional √ √ √ √ √ √ √ √ √
IP Class Class IP54 IP54 IP54 IP54 IP54 IP54 IP54 IP54 IP54
Excitation Wound Compound Compound Compound Series Compound Compound Series Compound Compound
Vibration mm/S <2 <2 <2 <2 <2 <2 <2 <2 <2
Insulation Resistance MΩ >10 >10 >10 >10 >10 >10 >10 >10 >10
Motor Endurance Hrs 400 400 400 800 400 400 800 400 400
