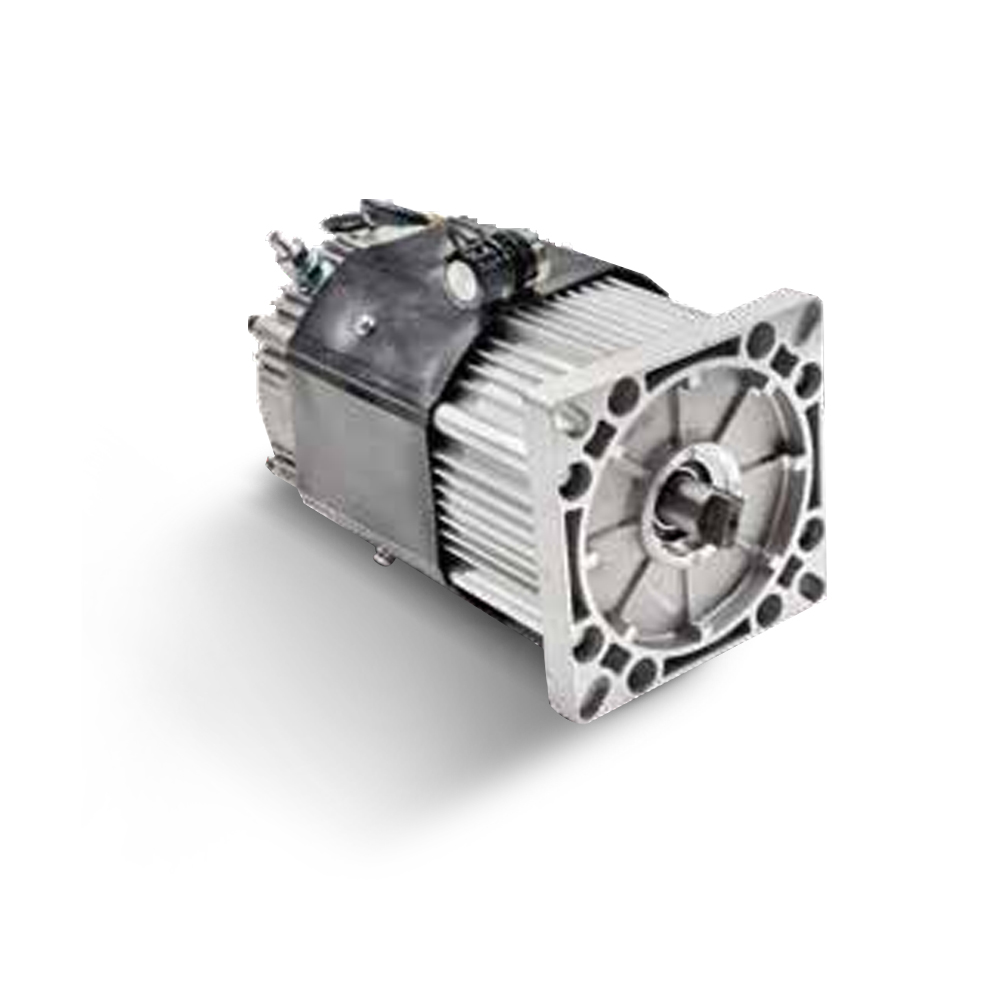

LD017 Controller Integrated Motor

Brushless DC (BLDC) motors boast advantages like long lifespan (no brush wear), high efficiency, low noise and precise speed control—key selling points for high-demand scenarios. Widely applied in intelligent logistics AGVs, industrial automation robotic arms, engineering machinery actuators and commercial vehicle powertrains, they ensure stable, energy-saving operation with strong adaptability to harsh industrial environments.

Contact Us
PREV：No previous articleNEXT：No next article
Motor Data and Model Motor Design About Mengyang Message
Motor Data Motor Model
LD014 LD030 LD031 LD017 LD033 LD013 LD032 LD027 LD028
Nominal Power kw 1.0  1.5  2.0  2.5  3.0  1.2  1.5  2.0  3.0
Nominal Voltage V 24  24  24  24  24  48  48  48  48
Environmental Tempeature

°C

 -20-40°C -20-40°C -20-40℃ -20-40℃ -20-40℃ -20-40℃ -20-40°℃ -20-40℃ -20-40℃
No-load Speed Rpm 3100  3100  3100  3100  3100  3100  3100  3100  3100
Na-load Current A 6  10  12  15  20  8  10  12  20
Nominal Torque N.m 3.6  6.0  7.0  0.0  12.0  4.0  6.0  8.0  120
Nominal Speed Rpm 2650  2600  2650  2650  2650  3000  2850  2700  2650
Nominal Current A 52  75  92  130  165  32  45  46  85
Duty Cycle S2 S1 30MIN 15MIN 15MIN 6MIN 60MIN 60MIN 60MIN 15MIN
S3 20%ED 16%ED 16%ED 12%ED 20%ED 20%ED 20%ED 16%ED
Motor Rotation CW/CCW CW CW CW CW CW CW CW CW CW
Motor Noise dBA/1m 68  68  68  68  68  68  68  68  68

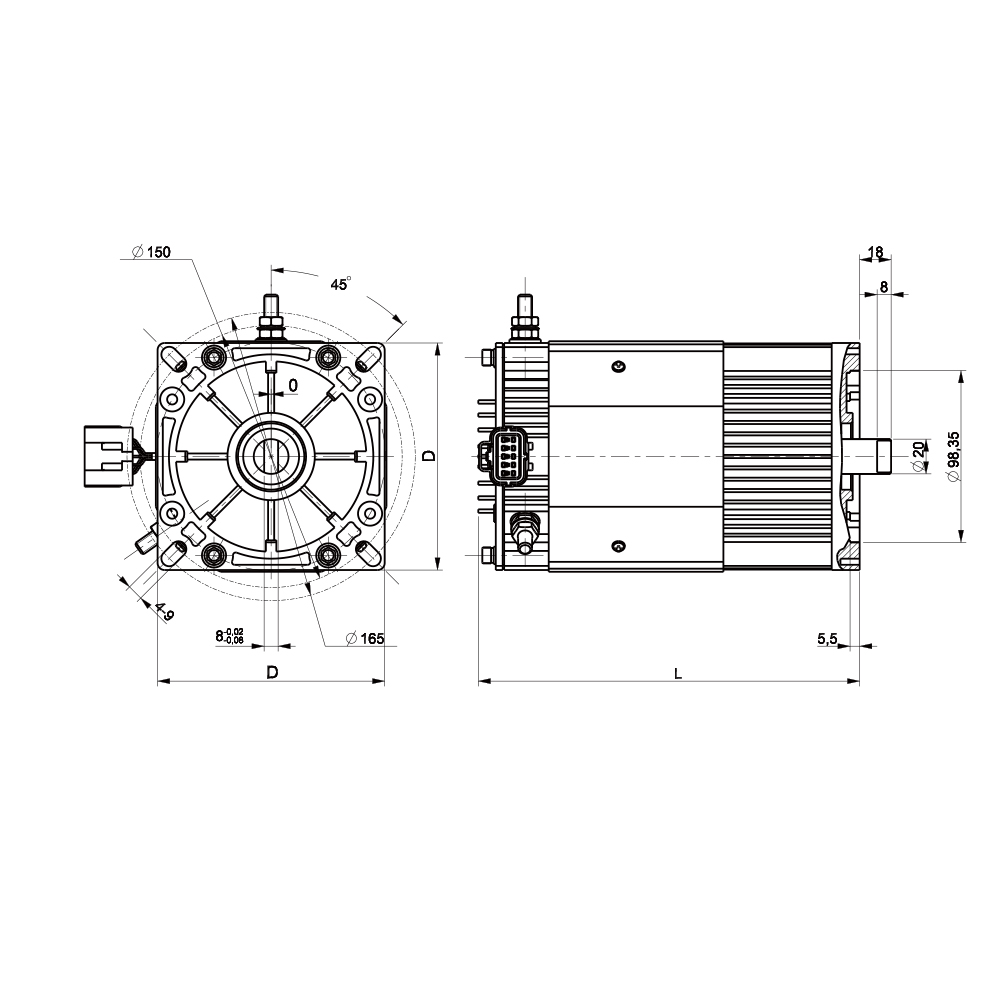

Motor Dimersin L(mm) 189  189  189  189  189  189  189  189  189
D(mm) 130  130  130  130  130  130  130  130  130
Motor Weight Kg 6.3  6.3  6.3  6.3  6.3  6.3  6.3  6.3  6.3
Insulation Degree Class F F F F F F F F F
Thermal Protectian Optional √ √ √ √ √ √ √ √ √
IP Class Class IP65 IP65 IP65 IP65 IP65 IP65 IP65 IP65 IP65
Excitation Wound PM PM PM PM PM PM PM PM PM
Vibration mm/S <2  <2  <2 <2 <2  <2  <2  <2 <2
Insulation Resistance MΩ >20 >20 >20 >20 >20 >20 >20 >20 >20
Motor Endurance Hrs
