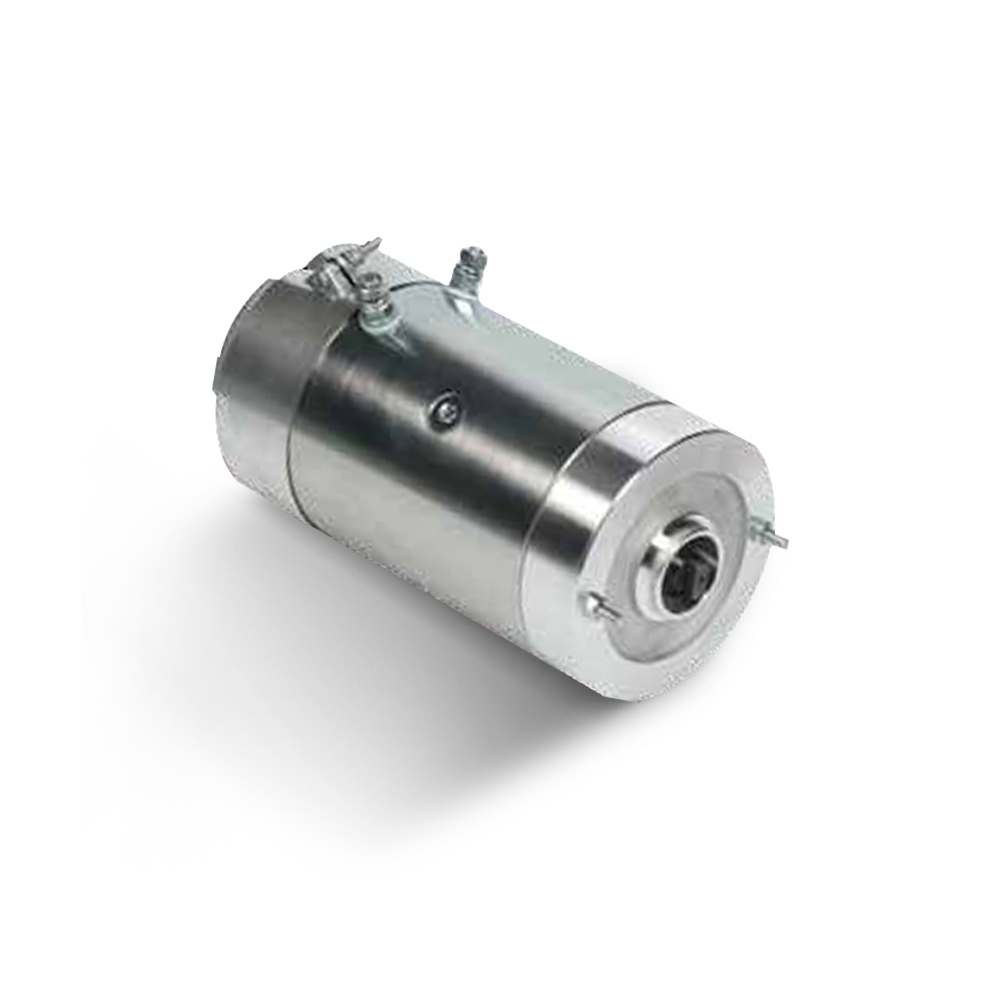

ZD084 5'' BY Family Motor

The 5-inch BY series brushless DC motor combines a compact 5-inch frame with advanced electronic commutation, eliminating brush wear for extended lifespan and low noise. It delivers high efficiency, precise speed control, and stable torque output, ideal for heavy-duty industrial scenarios. Widely applied in intelligent logistics AGV traction systems, engineering machinery hydraulic actuators, industrial automation robotic arms, and commercial vehicle cooling fans, it undergoes rigorous stator-rotor calibration and load testing during production, with customized technical support and maintenance services available.

Contact Us
PREV：ZD008 3''C Family MotorNEXT：No next article
Motor Data and Model Motor Design About Mengyang Message
Motor Data Motor Model
ZD084 ZD086 ZD062
Nominal Power kW 3.2KW 3KW 3.2KW
Nominal Voltage V 24V 24V 48V
Environmental Tempeature

°C

 -20-40℃ -20-40℃ -20-40°C
No-load Speed Rpm 7600  4200  6800
No-load Current A 35  20  20
Nominal Torque N.m 9.7  10  9.7
Nominal Speed Rpm 3250  2850  3150
Nominal Current A 175  165  90
Duty Cycle S2  5MIN 5MIN 5MIN
S3  16%ED 9%ED 16%ED
Motor Rotalian CW/CCW CW CW CW
Motor Noise dBA/1m 82  82  82

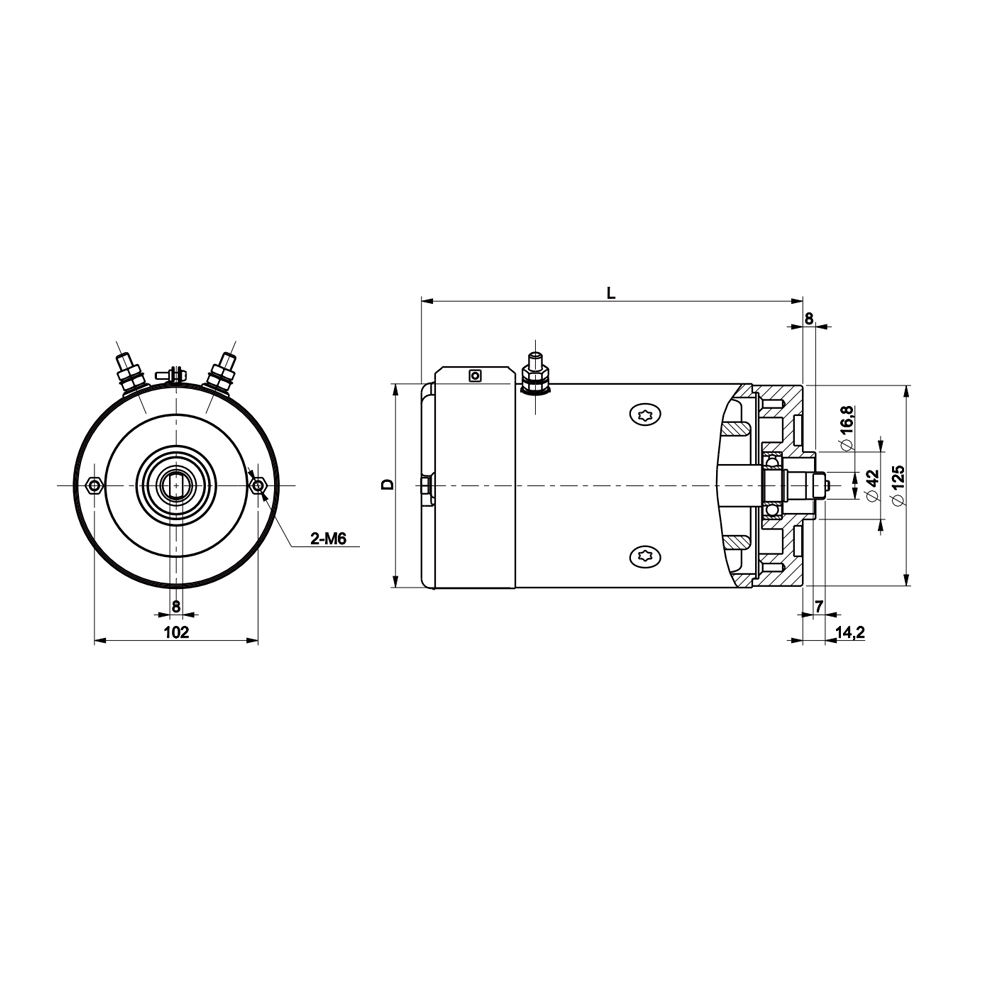

Motor Dimension L(mm) 237.5  237.5  237.5
D(mm) 127  127  127
Motor Weight Kg 12  12  12
Insulation Degree Class F F F
Thermal Protection Optional √ √ √
IP Clas Class IP21 IP54 IP21
Excitation Wound Series Compound Series
Vibration mm/S <3.8 <3.8 <3.8
Insulation Resistance MΩ >10 >10 >10
Motor Endurance Hrs 800 800  800
