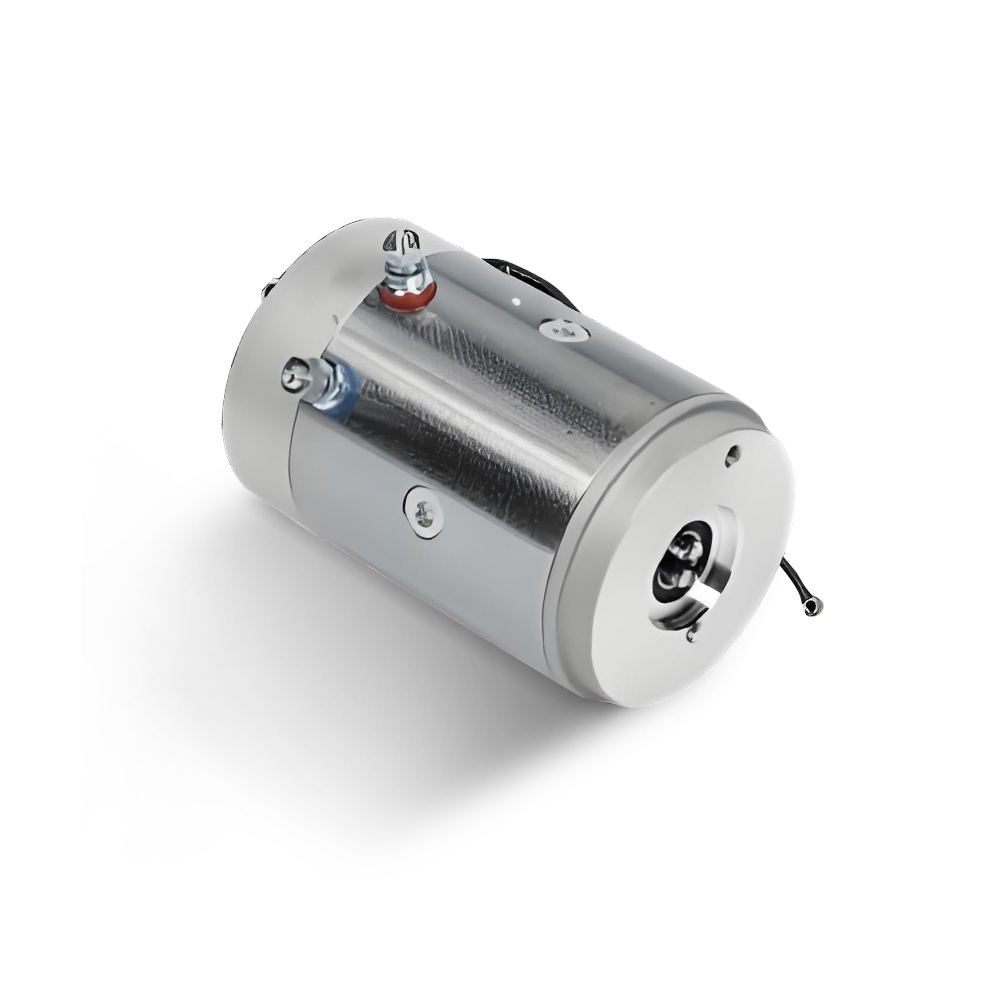

ZD033 4.5'' V Family Motor

The 4.5-inch V-cover series brushed DC motor is engineered with a rugged V-shaped end cover, boosting vibration resistance and heat dissipation for stable operation in tough industrial settings. It offers high starting torque, smooth speed regulation and cost-effectiveness, suiting light-to-medium load applications. Perfect for intelligent logistics sorting conveyors, engineering machinery micro-hydraulic pumps, industrial automation pick-and-place units and commercial vehicle seat adjusters, it undergoes precision winding and torque validation, with customizable solutions and prompt after-sales support provided.

Contact Us
PREV：No previous articleNEXT：ZD008 3''C Family Motor
Motor Data and Model Motor Design About Mengyang Message
Motor Data Motor Model
ZD048 ZD064 ZD025 ZD010 ZD012 ZD096 ZD033 ZD021 ZD085 ZD086
Nominal Power kW 1.6  2  2.5  2  2  2.2  2.5  2.5  2.8  3
Nominal Voltage V 12  12  24  48  72  24  12  24  24  24
Environmental Tempeature ℃ -20-40℃ -20-40°C -20-40℃ -20-40°C -20-40°C -20-40℃ -20-40℃ -20-40℃ -20-40℃ -20-40℃
No-load Speed Rpm 4200  5800  6200  4800  5800  6200  6200  6200  8000  4200
Na-load Current A 35  40  20  12  10  20  50  35  40  20
Nominal Torque N.m 6  8  10  7  7  10  10  10  9  11
Nominal Speed Rpm 2650  2600  2650  2850  3200  2250  2400  2950  3100  2850
Nominal Current A 185  265  135  70  50  135  280  170  170  170
Duty Cycle S2 2Min 2Min 2Min 2Min 2Min 2Min 5Min 2Min 5Min 4Min
S3 8%ED 8%ED 8%ED 8%ED 8%ED 8%ED 13%ED 8%ED 13%ED 15%ED
Motor Rotation CW/CCW CW CW CW CW CW CW CW CW CW CW
Motor Noise dBA/1m 72  72  72  72  72  72  72  72  72  82

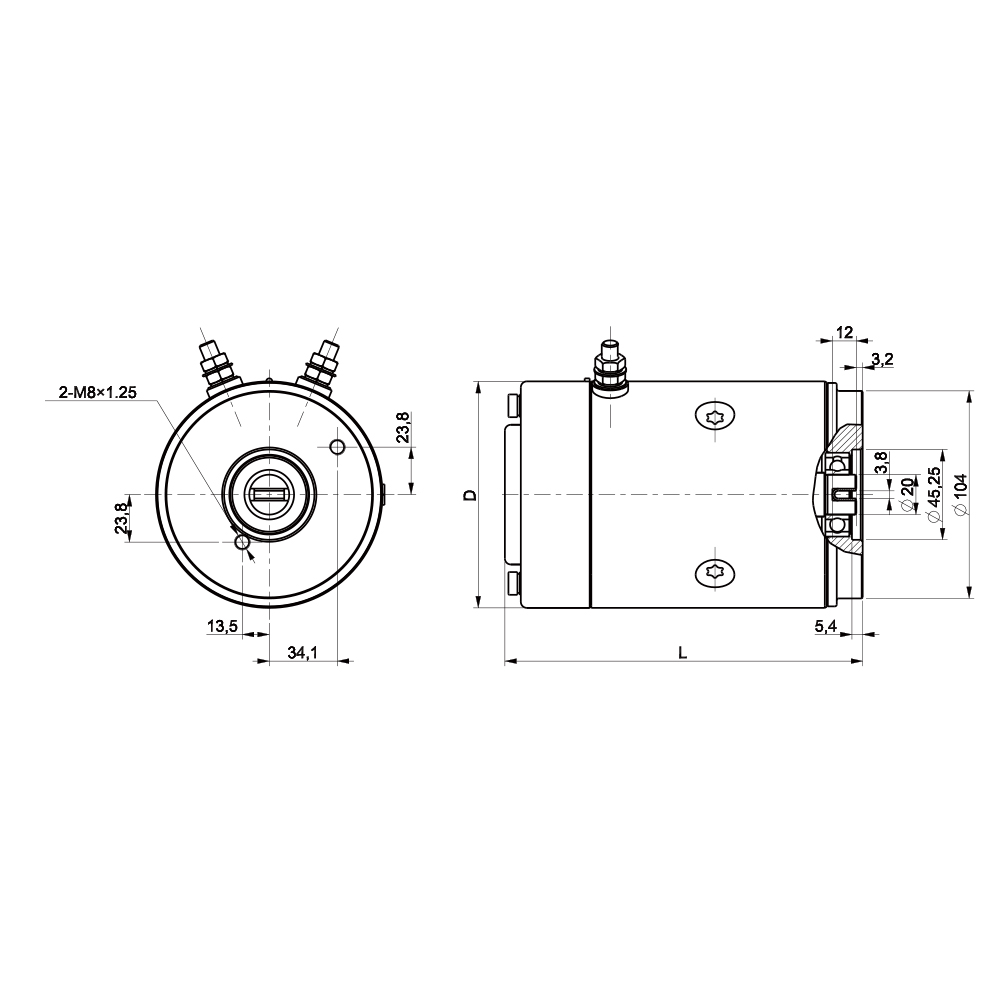

Motor Dimersin L(mm) 178.8  178.8  178.8  178.8  178.8  209.8  195.8  178  220.6  229
D(mm) 114  114  114  114  114  114  114  114  114  127
Motor Weight Kg 6.9  6.9  6.9  6.9  6.9  9  8.4  6.9  9.4  12
Insulation Degree Class F F F F F F F F F F
Thermal Protection Optional √ √ √ √ √ √ √ √ √ √
IP Class Class IP54 IP54 IP54 IP54 IP54 IP54 IP54 IP54 IP54 IP23
Excitation Wound Compound Compound Compound Compound Compound Compound Series Compound Series Compound
Vibration mm/S <2  <2  <2    <2 <2 <2 <2  <2 <2 <3.8
Insulation Resistance MΩ >10 >10 >10 >10 >10 >10 >10 >10 >10 >10
Motor Endurance Hrs 400  400   400  400  400  400  800  400  800  800
