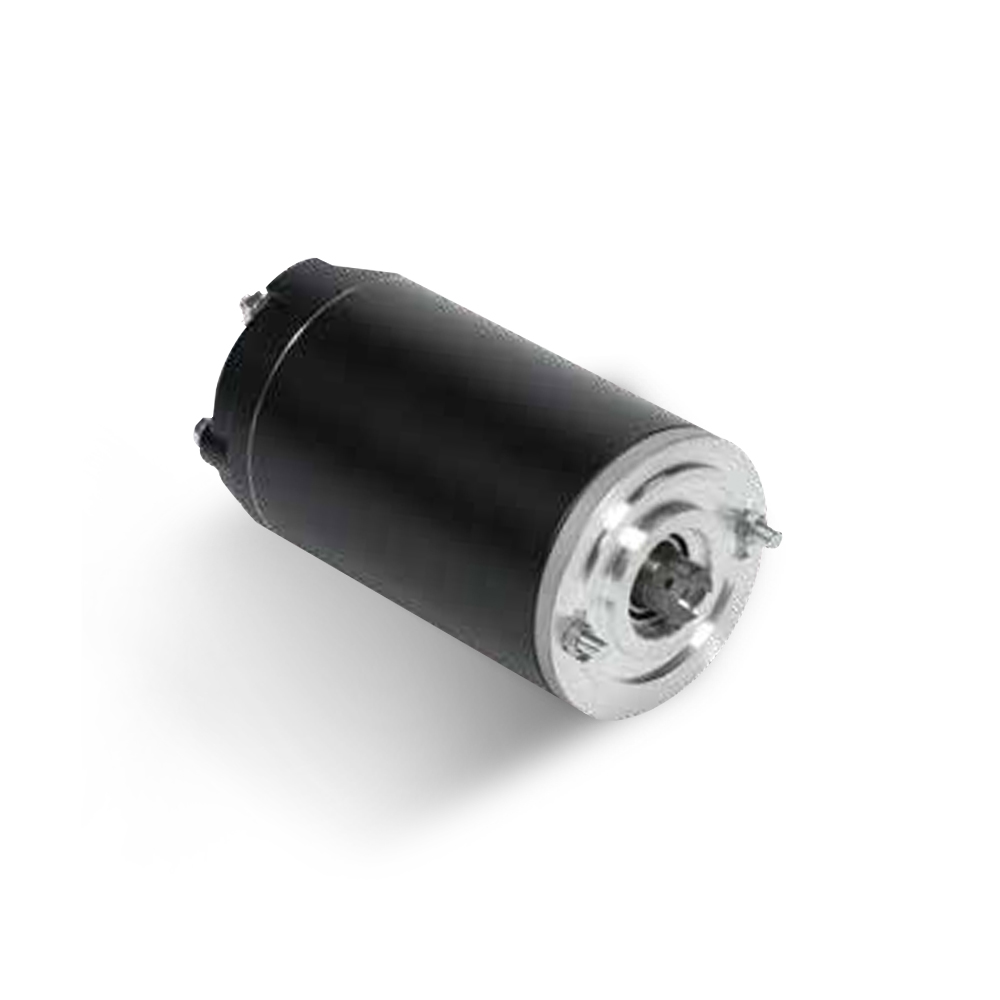

ZD008 3''C Family Motor

The 3-inch C-cover series brushed DC motor features a sturdy C-type end cover for enhanced structural rigidity and dustproof performance. It delivers high starting torque, smooth speed regulation, and low power consumption, making it a cost-effective pick for light-to-medium load scenarios. Ideal for intelligent logistics AGV wheel drives, industrial automation small conveyors, engineering machinery micro-actuators, and commercial vehicle window lifters, it undergoes precision winding and torque testing during production, with on-demand customization and timely after-sales support provided.

Contact Us
PREV：ZD033 4.5'' V Family MotorNEXT：ZD084 5'' BY Family Motor
Motor Data and Model Motor Design About Mengyang Message
Motor Data Motor Model
ZD071 ZD075 ZD008 ZD112 ZD102
Nominal Power kW 0.5  0.8  0.8  0.5  0.8
Nominal Voltage V 12  12  24  48  48
Environmental Temperature ℃ -20-40°℃ -20-40°C -20-40℃ -20-40℃ -20-40℃
Na-load Speed Rpm 4200  4800  4600  3600  4600
No-load Current A 10  14  5  2  2.5
Nominal Torque N.m 2  2  2  2  2
Nominal Speed Rpm 2300  3400  3100  2500  3100
Nominal Current A 72  90  42  16  23
Duty Cycle S2  2.5MIN 2MIN 2MIN 2MIN 2.5MIN
S3  10%ED 10%ED 10%ED 10%ED 10%ED
Motor Rotation CW/CCW CW CCW CW CW CW
Motor Noise dBA/1m 68  68  68  68  68

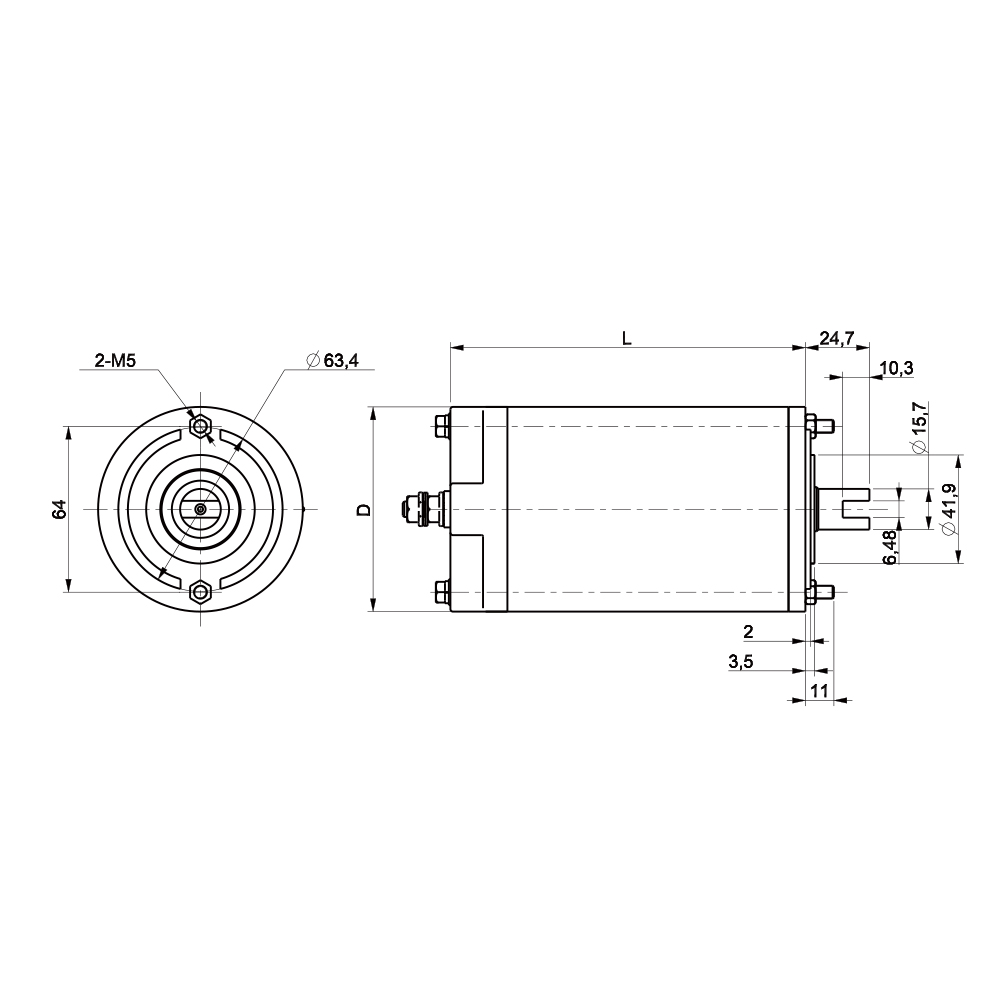

Motor Dimension L(mm) 137  137  137  137  137
D(mm) 79  79  79  79  79
Motor Weight Kg 2.6  2.6  2.6  2.6  2.6
Insulation Degree Class F F F F F
Thermal Protection Optional √ √ √ √ √
IP Class Class IP54 IP54 IP54 IP54 IP54
Excitatian Wound PM PM PM PM PM
Vibration mm/s <1.6 <1.6 <1.6 <1.6 <1.6
Insulation Resistance MQ >10 >10 >10 >10 >10
Motor Endurance Hrs 400  400  400  400  400
