HITACHI 22246N

Specifications
SPECS: 50 Amp/12 Volt, CW, 1-Groove Pulley
SPECS FOR: Hitachi IR/EF
MFR: HITACHI
DESIGN: IR/EF
PULLEY NOTE: 82MM OD
FEATURE 1:100% NeW

Hitachi LR140-426, LR150-421, LR150-421C, LR150-434, LR150-434B, LR150-441, LR150-441C, LR150-441E, LR150-442, LR150-448, LR150-448B, LR150-449C, Isuzu 8941224883, 8943820590, 8943820591, 8944195191, 8970377241, 8971137700, 8971876570, Marelli 063307402010, 63307402, Opel 6204054

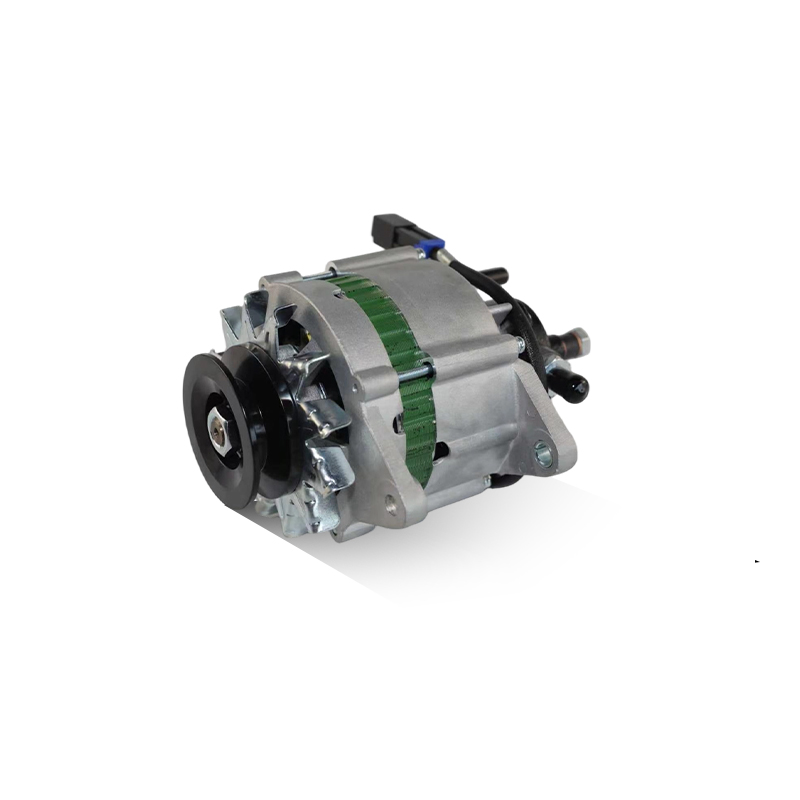

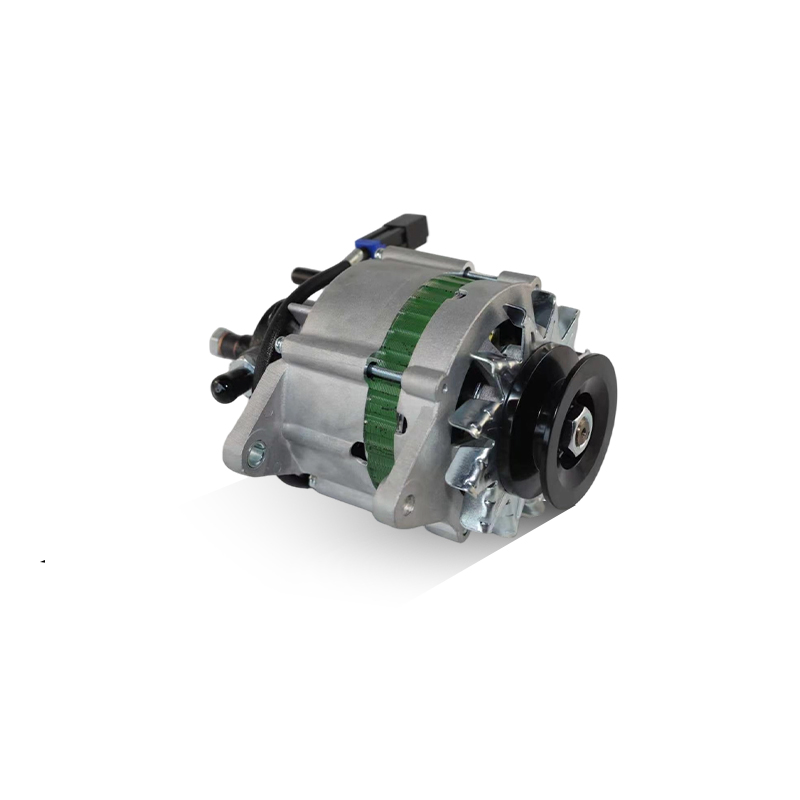

This alternator comes equipped with a single-groove pulley featuring an outside diameter (OD) of 82mm—a design specifically optimized for a particular power transmission ratio. Its rotational direction is configured for clockwise (CW) operation; this directional design is typically engineered to ensure optimal mechanical compatibility with specific passenger car or light commercial vehicle engines, thereby guaranteeing OE-level standards for belt tension and transmission smoothness.
Electrical Specifications and Professional Compatibility: This product delivers an output of 50A at 12V, making it ideally suited for light-duty diesel or gasoline-powered systems with moderate electrical loads. Utilizing an IR/EF (Internal Regulator/External Fan) architecture, it integrates voltage regulation functionality within a compact housing; furthermore, it employs an external fan to facilitate forced-convection cooling, thereby ensuring the reliability of the rectifier diodes even within the high-temperature environment of an engine compartment.
