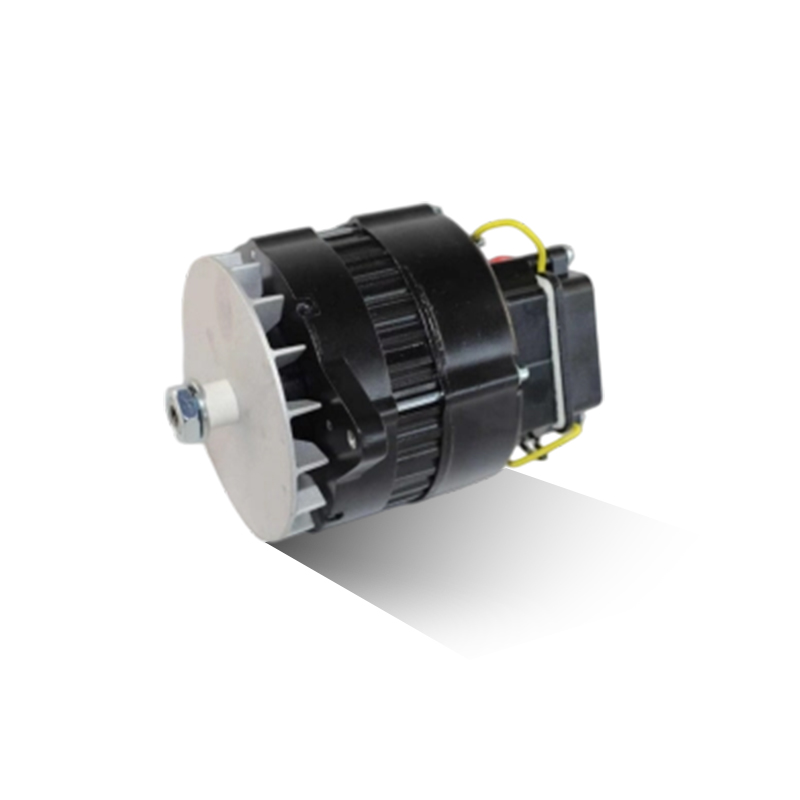

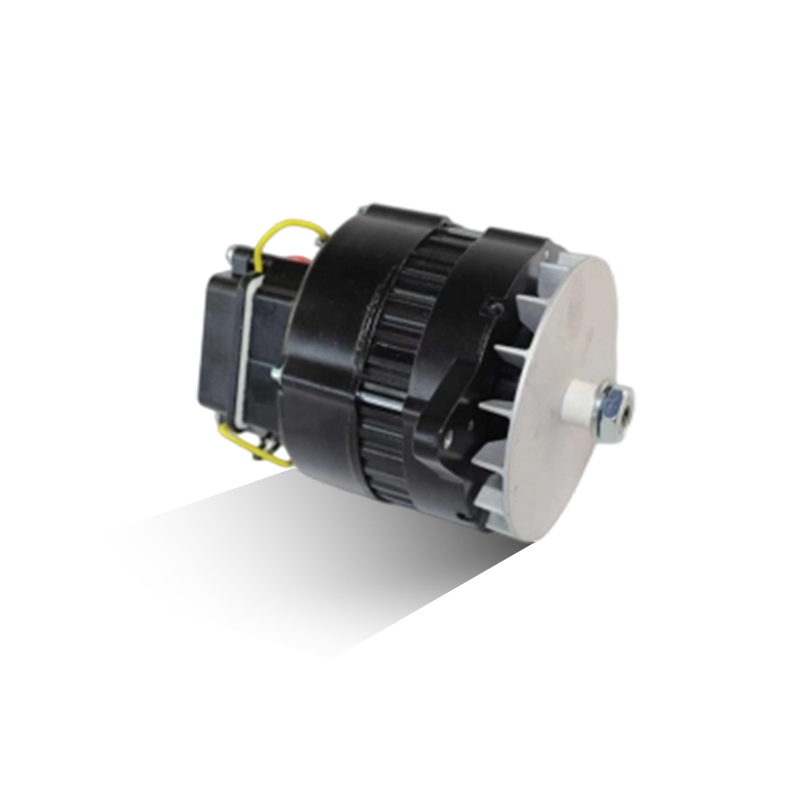

5 INCH 8MR2069TAP

SPECS: 90 Amp/12 Volt, w/o Pulley
SPECS FOR: Motorola IR/EF
MFR: MOTOROLA
DESIGN: IR/EF
PULLEY CLASS: W/O PULLEY
FEATURE 1: 100% New

CROSS REFERANCE: Delco 61022016, John Deere RE50411, RE50811, Kohler GM29294, Mercury Marine 8M6007477, Motorola 10-402, 8MR2069T, 8MR2069TA, Prestolite 110-402, 110-602

Designed with a 12V voltage system, this alternator delivers a rated current output of up to 90A, making it specifically engineered for heavy machinery and industrial equipment with high power demands. At its core, it utilizes an IR/EF (Internal Regulator/External Fan) architectural design; this structure ensures the voltage regulator is integrated within the housing—effectively minimizing external wiring complexity—while the external fan provides a more direct cooling path, guaranteeing the alternator maintains optimal operating temperatures even under sustained high-load output.
This model is designated as "100% Brand New," signifying that its internal rectifier bridge, rotor, and stator coils have not undergone refurbishment, thereby ensuring a longer service life and superior initial conductivity. The product is designed without a pre-installed pulley, offering installers greater flexibility to freely select a pulley of the appropriate specifications based on the specific transmission requirements of the accompanying agricultural machinery (such as large tractors) or industrial power units. In terms of compatibility, it serves as a precise replacement for electrical components across a wide range of mainstream industrial and agricultural equipment, requiring no modification to existing mounting brackets.
From a long-term maintenance perspective, the robust 90A output not only satisfies the power requirements of the vehicle's own lighting and control systems but also provides stable electrical support for auxiliary electro-hydraulic control units or load-monitoring equipment. Its standardized interface design significantly simplifies the replacement process during after-sales service, establishing it as a reliable power core for applications in the agricultural, water conservancy, and engineering construction sectors.
